API keys

API keys are credentials for non-interactive clients — CI runners, webhooks, scripts, and the GitHub Action. They authenticate machine-to-machine traffic without consuming a user's JWT session.

Audience

developer (issues project-scoped keys for their own team's projects), team_admin (adds team-scoped keys) and super_admin (adds org-scoped keys).

Manage with the /integrations UI​

Most users issue and revoke their own keys from the Integrations page. The /integrations UI:

  • Lists every key the signed-in user is permitted to manage.
  • Opens a one-time reveal modal on Create, with a copy-to-clipboard button and a hard warning that the full key is shown only once.
  • Offers per-row Revoke with a confirmation dialog; revocation propagates within ~5 seconds.

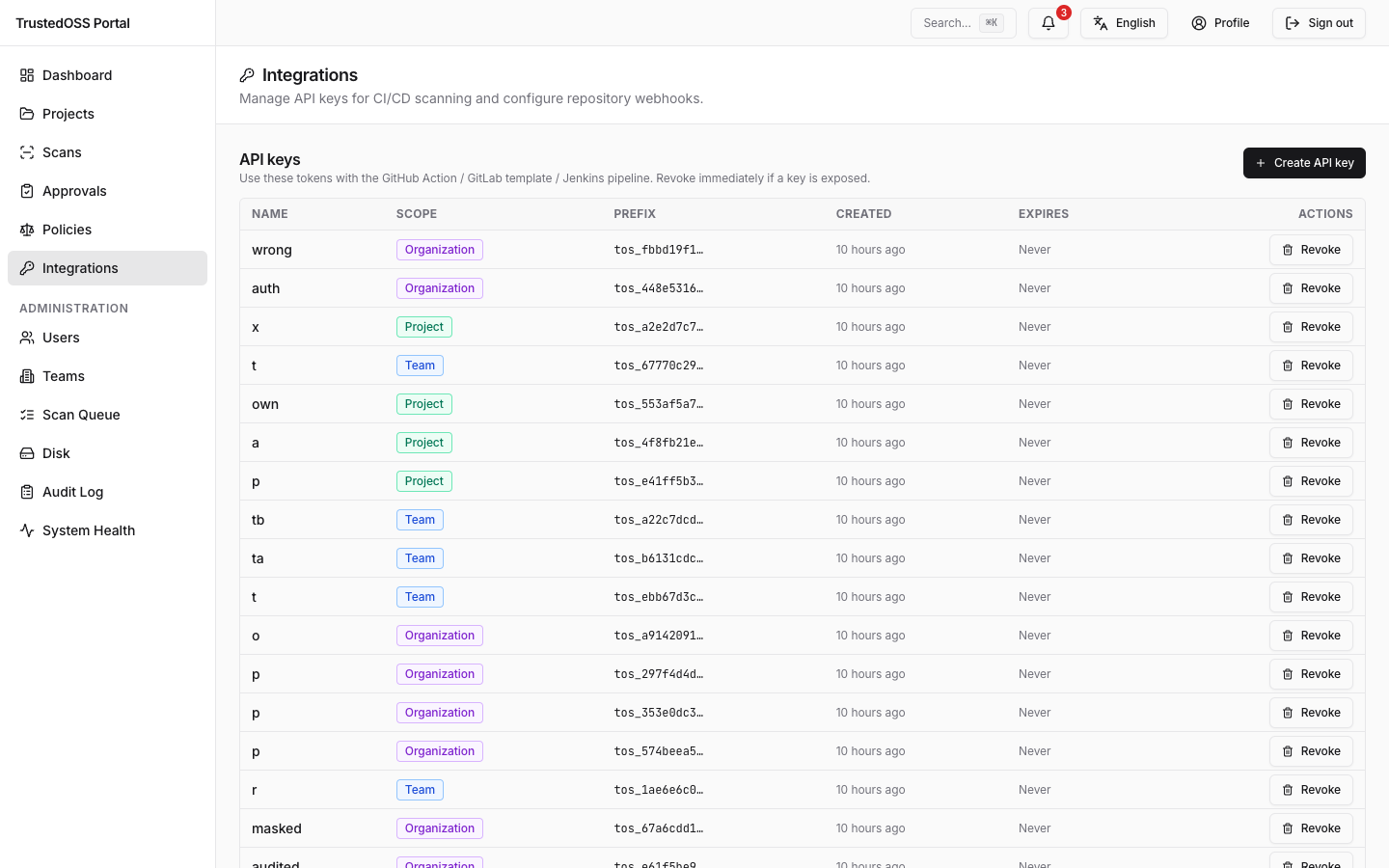

/integrations — API keys section that admins use to mint and revoke keys

The Create dialog is one surface for every role. Its scope dropdown lists only the scopes the signed-in user may issue, so a developer sees project on its own and a super-admin sees all three:

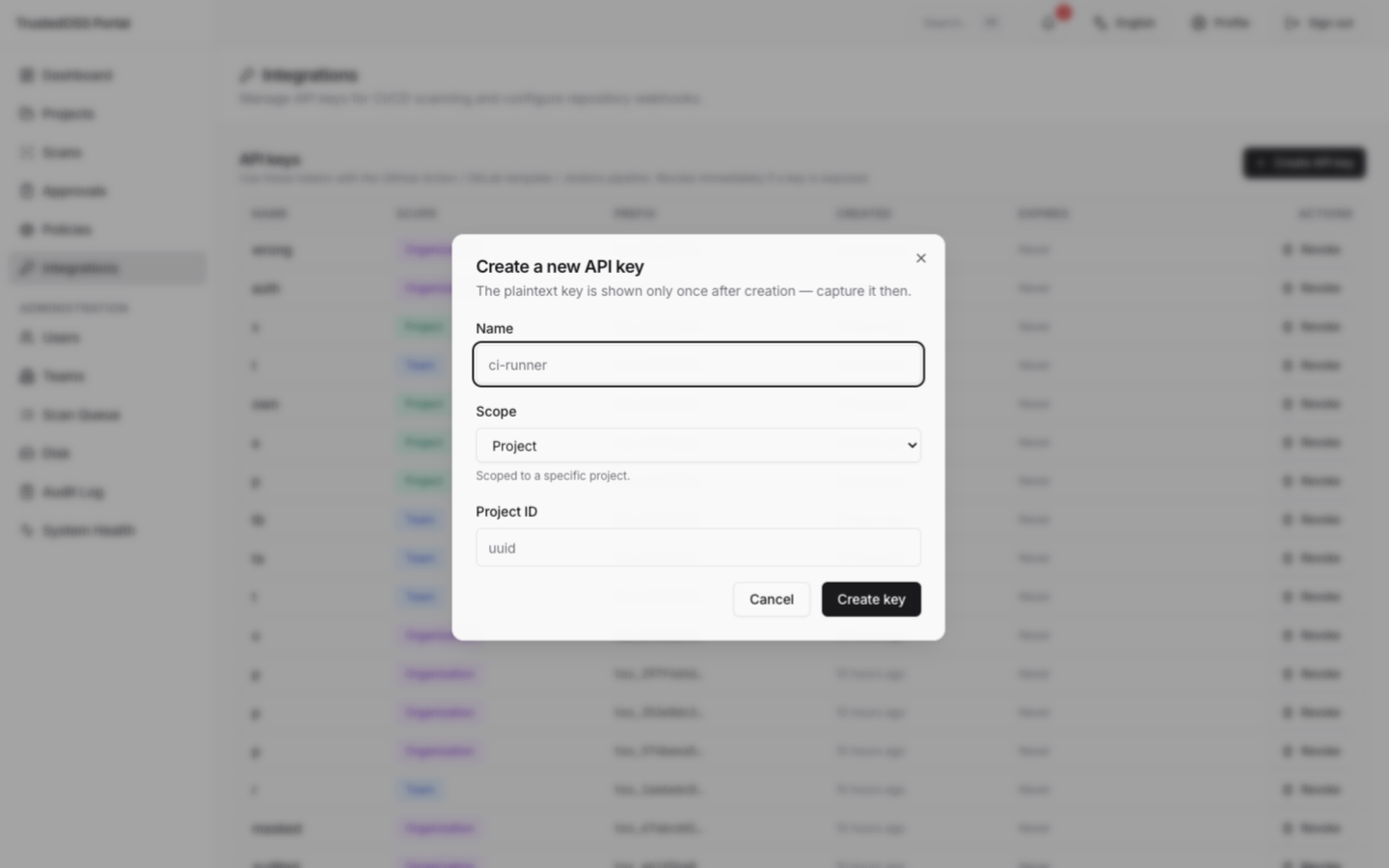

/integrations — Create API key dialog with label and scope inputs

This page covers the server-side mechanics — key shape, hashing, scope semantics, audit log, and rotation strategy. Users who only need to wire a key into CI can stop at the Integrations user guide.

Key shape​

tos_<8-char-prefix>_<32-char-secret>

Example: tos_a1b2c3d4_eaff8b91d36c5e0a2f1c4d7e8a9b0c2d.

  • tos_ — fixed prefix.
  • <8-char-prefix> — random, public. Used for lookup and as a display label. Visible in the audit log.
  • <32-char-secret>: random, private. Stored only as a bcrypt hash on the server. The full key is shown to the operator once, at creation, and never again.

Lookups are constant-time across the prefix; secret comparison uses bcrypt.checkpw to defeat timing attacks.

Scope model​

Each key carries a single resource scope that determines the authorization boundary:

  • org — acts org-wide; can call any endpoint the issuing user could.
  • team: acts on behalf of a specific team. With the permission cascade on (the default; see Nested groups), this also reaches every subgroup nested under that team, the same reach a direct membership there would have. Calls outside that reach fail with 403.
  • project — bound to a specific project; calls outside that project fail with 403.

Who can issue each scope:

ScopeWho can issue
orgsuper-admin only
teamsuper-admin, team-admin
projectsuper-admin, team-admin, developer (within their team's projects)

The key inherits the role of the issuing user at request time, narrowed by its own permission breadth (below); there is no finer-grained "effective role" or per-action allow-list in this release. Permission checks fall through to the same RBAC code path as a JWT-authenticated request.

Permission breadth​

Each key is also either read-only (the default) or read-write. A read-only key is refused every request that changes something, including triggering a scan, so a pipeline that only polls results or downloads reports cannot start one. Breadth only narrows over a key's life, so a read-write key can become read-only but not the reverse (issue a new key instead). Pick read-write only when the caller genuinely needs to write; most CI scan triggers do, while a pipeline that only reads a prior scan's SBOM or gate result does not.

Keys support an optional expiry (TTL). Pass expires_in_days (1-1825) when issuing and the key stops authenticating after that many days, so a leaked CI key (pipeline log, forked-PR runner) lapses on its own instead of living until manual revocation. Omit it for a non-expiring key (the legacy default). CI keys should set a TTL and rotate. A fine-grained allowed_actions taxonomy (scan:trigger, scan:read, report:download, and so on) narrower than the read-only/read-write split above is still on the roadmap.

curl -sS -X POST "https://trustedoss.example.com/v1/api-keys" \
  -H "Authorization: Bearer ${JWT}" -H "Content-Type: application/json" \
  -d '{"name": "ci-key", "scope": "project", "project_id": "<uuid>", "permission_breadth": "read_write", "expires_in_days": 90}'

Issuing a key​

From the Integrations page​

  1. Open /integrations (top-level sidebar entry, available to every signed-in user).
  2. Scroll to the API keys section.
  3. Click Create API key. The button is absent only for a user who belongs to no team, since no scope is open to them.
  4. Fill in:
    • Name (e.g. github-action-checkout-service)
    • Scope: project (default); team also appears if you administer a team
    • Project ID: required when scope is project; Team ID when scope is team
    • What this key may do: Read only (the default, recommended) or Read and write; pick read-write for a key that will trigger scans
    • Expiration: Never expires (the default), or a 30 / 90 / 180 / 365-day preset, submitted as expires_in_days
  5. Create.

The full key is shown once in a modal. Copy it and store it in your CI's secret store (GitHub secrets, GitLab CI variables, Jenkins credentials). After you close the modal, only the prefix is visible from the UI; the full key is unrecoverable.

As a super-admin​

The same flow at /integrations, with the additional option to set the scope to org for keys that cross team boundaries (rare — most CI integrations should stay at team or project scope).

Using an API key​

Pass the key in the Authorization header as a Bearer token:

curl -sS -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  https://trustedoss.example.com/v1/projects

The portal logs the prefix on every request to help with traceability.

Rotation​

Why rotate​

  • Compromise — the key was committed to a public repo, or a CI runner was breached. Revoke immediately.
  • Personnel change — the team admin who issued the key is leaving. Issue a fresh key, swap CI secrets, then revoke the old one.
  • Policy — quarterly rotation as a defence-in-depth measure.

How to rotate without downtime​

  1. Issue a new key with the same scope.
  2. Update CI secrets to the new key.
  3. Wait for one CI cycle to confirm the new key works.
  4. Revoke the old key.

The old key is rejected within ~5 seconds of revocation (the auth cache TTL).

Revocation​

  1. /integrations → API keys → key row → Revoke.
  2. Confirm.

Revocation is immediate and irreversible. To bring a key back, issue a new one.

Listing keys​

The UI shows: label, prefix, scope (org / team / project), permission breadth (read-only / read-write), creator, created timestamp, last-used timestamp, expiry (expires_at, null when non-expiring), and revocation status. There is no way to recover the secret of an existing key, by design. A last-used IP column and the finer-grained allowed_actions taxonomy above are on the roadmap.

The last-used timestamp is rounded to the nearest API_KEY_LAST_USED_AT_UPDATE_INTERVAL_SECONDS (15 minutes by default). Authentication no longer stamps the exact instant of every request: it means "used at some point within that interval," not "used at this exact second." A key polled dozens of times by one CI run over 20 minutes shows one or two timestamp updates, not one per poll. This is enough resolution to answer "is this key still in use," which is what the column is for; it is not a per-request audit trail, so use the structured backend logs (api_key.auth_failed / the domain audit rows a key's requests create) for that.

Audit log​

Key lifecycle events log:

  • target_table=api_keys&action=create — emitted by the ORM listener when a key row is inserted (actor, target prefix, scope).
  • api_key.revoked — emitted by the API key service as a structlog event only on explicit revocation (actor, target prefix). It does not create an audit_logs row in this release. The ORM listener still records the underlying api_keys.update row when revoked_at flips, so the revocation is captured on the audit table — under target_table=api_keys&action=update rather than under the structlog event name.

Per-request audit rows are not emitted for API-key authentication in this release (an api_key.use event is on the roadmap). Audit rows that are produced by an API-key request still carry the resulting domain action (e.g. target_table=scans&action=create); the API key's prefix is captured by structured logs on the request, but the audit row's actor_user_id is the issuing user, not the key.

Webhook secrets vs. API keys​

These are not interchangeable. The portal distinguishes:

  • API keys — outbound from a CI client to the portal API.
  • Webhook secrets — used to verify inbound HMAC signatures on webhooks (GitHub X-Hub-Signature-256, GitLab X-Gitlab-Token).

See Webhooks for the webhook flow.

Verify it worked​

After issuing a key:

  1. curl -sS -H "Authorization: Bearer <key>" .../v1/projects returns 200 with the team's projects.

  1. The audit log records a target_table=api_keys&action=create row with the prefix. The Admin UI cannot filter on target_table=api_keys — api_keys is not in the AuditTargetTable whitelist (see Audit log → Filter-visible vs raw-row tables). Use raw SQL to verify:

    SELECT * FROM audit_logs
     WHERE target_table = 'api_keys'
       AND action = 'create'
       AND created_at > now() - interval '1 hour'
     ORDER BY created_at DESC;
  1. The CI build that consumes the key passes its first run.

Troubleshooting​

401 with a freshly created key​

The two most common causes:

  • The key value is malformed. Leading and trailing whitespace around the bearer value is stripped before authentication, so accidental surrounding whitespace is tolerated — but whitespace inside the key breaks it. Re-paste from the original modal: keys are exactly tos_ + 8 + _ + 32 chars.
  • The portal distinguishes the two failure modes:
    • 401 = credential problem (no header, malformed Bearer, unknown prefix, signature mismatch, revoked, expired).
    • 403 = credential is valid but the key's scope does not cover the resource (e.g. team-scope key hitting an org-only endpoint).

"Key prefix exists but secret does not match"​

Someone tried to brute-force the secret, or a malformed key was sent. The portal logs every miss as an api_key.auth_failed event (with the key key_prefix, never the secret) in the structured backend log. Brute-force detection (a Slack alert when a single key crosses N misses per minute) is on the roadmap; until then, periodically grep the backend logs for repeated api_key.auth_failed lines:

docker-compose -f docker-compose.yml logs --tail=2000 backend \
  | grep api_key.auth_failed | sort | uniq -c | sort -rn | head

If you see a single prefix repeating, revoke and rotate immediately.

Key works locally but not from CI​

Confirm:

  • The CI secret is set on the right environment / branch.
  • The runner's outbound IP is not blocked by your portal firewall (some installs whitelist office IPs only).
  • The Authorization header is preserved through any reverse proxy your CI traffic transits.

Roadmap​

The following capabilities are referenced in early docs but are not shipped in this release:

  • Per-key role override (effective_role) and a granular allowed_actions taxonomy (scan:trigger, scan:read, report:download, webhook:receive, *). Today the key inherits the issuing user's role and the full RBAC surface.
  • A free-form expiry value in the Create API key form. The form offers Never plus the 30 / 90 / 180 / 365-day presets; any other TTL inside the API's 1 to 1825 day range has to be issued through expires_in_days directly.
  • Per-request api_key.use audit event with actor_kind = api_key. Today key lifecycle (the ORM-listener insert and the explicit api_key.revoked action) is audited but per-request use is captured only in structured logs.
  • last_used_ip column in the listing.
  • Brute-force secret-mismatch alerting (Slack notification when a single key crosses 5 misses / 60 s).
