Components & licenses

After a scan completes, the project's Components tab lists every package the pipeline discovered, along with the licenses the scan attached to each one. This page covers reading the table, the license-classification model, the difference between declared and detected licenses, and the obligations the portal tracks.

Audience

Engineers triaging dependency hygiene; legal / compliance reviewers reading licenses. Read access requires team membership; mutating actions (suppression, manual concluded license) require developer or higher.

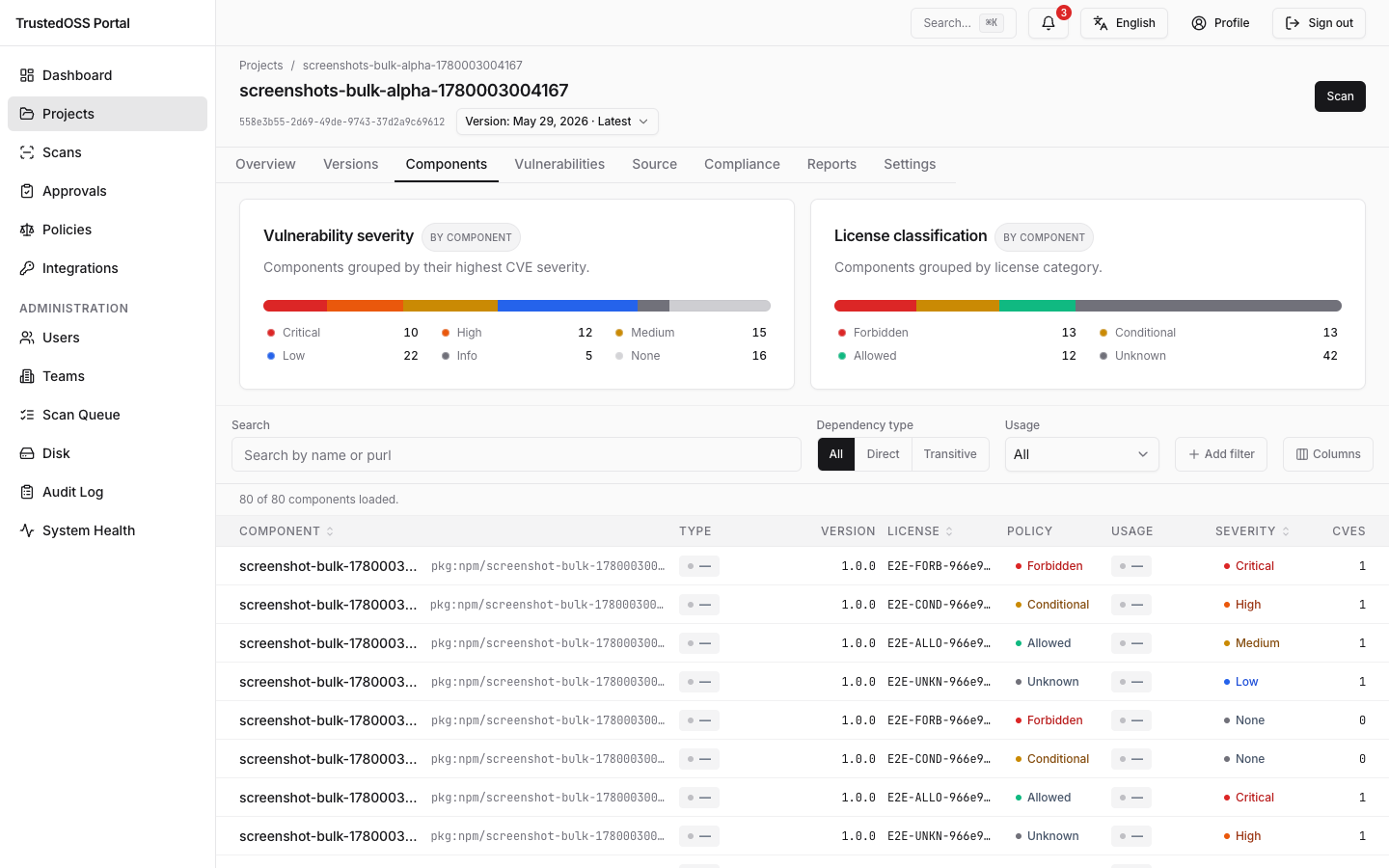

The components table

Columns:

• Component — package name (e.g. lodash, org.springframework:spring-web).
• Type — Direct / Transitive / —. A coloured badge that summarises the dependency graph depth: Direct (depth 1, you declared it) vs. Transitive (depth 2+, pulled in by another package); — for older scans that pre-date this collection or ecosystems whose graph the scanner could not record. See Direct vs. transitive.
• Version — pinned version found in the manifest or lockfile.
• License — the license attached to the component. For a dependency this is the declared license cdxgen read from package metadata; see Declared vs. detected for how detected and concluded licenses relate. This is the value used by the build gate.
• Usage — Required / Optional / —. The dependency scope cdxgen recorded along the shortest path to this component (when the same component is reachable via several paths the highest-scope path wins, i.e. Required > Optional). — means the scanner did not emit a scope for this component. Optional dependencies often carry the same legal obligations as required ones, but the Required / Optional distinction maps to license-compliance burden — an unused Optional extra is cheaper to remove than a deeply-required transitive dependency.
• EOL — an EOL badge when the component's release cycle is past its published end-of-life; blank otherwise. See End-of-life flagging.
• Currency — an Outdated badge when a newer patch of the component's (still-supported) release line has been published; blank otherwise. See Version currency.
• Severity — the highest severity across this component's open CVEs (carries the license-classification color via the legend).
• CVEs — count of open vulnerabilities for this component (clickable; jumps to the Vulnerabilities tab pre-filtered).

The table is virtualized — projects with thousands of components scroll smoothly.

Filters

The inline filter bar at the top supports:

• Search — substring match against name@version.
• Dependency type — a three-state segmented control (Any / Direct only / Transitive only). The Direct-only segment maps to ?direct=true on the API; Transitive-only maps to ?direct=false.
• Usage — multi-select (Required / Optional). Selecting both is equivalent to no filter; selecting only an unknown value drops to an empty page rather than 422-rejecting (consistent with severity / license-category filter semantics).
• Severity — multi-select badges (Critical / High / Medium / Low / Info).
• License category — multi-select (Allowed / Conditional / Forbidden / Unknown).
• EOL only — a toggle that narrows the table to components past their end-of-life (?eol=true).
• Outdated only — a toggle that narrows the table to components behind the latest patch of their release line (?outdated=true). See Version currency.
• Sort + order — column-driven sort with ascending / descending toggle.

Filters compose. The URL updates (?direct=…, ?dependency_scope=…, …) so you can share a filtered view.

Runtime-scope filtering

The table shows the deployable runtime set, not everything the build resolved. cdxgen records every resolved node — including the test/dev toolchain (junit, lombok, jest, eslint, …) that never ships with the artifact — so by default the scanner drops those before the SBOM is persisted, signed and matched against the vulnerability DB:

• Maven — components cdxgen tagged optional (Maven test scope) or excluded (provided/system scope) are removed. The filter only runs when the SBOM actually carries scope tags; an SBOM without them is kept whole, so recall never regresses.
• npm — packages the project's package-lock.json classifies as dev are removed. A package the lockfile does not cover is always kept (nested manifests in a monorepo are not covered by the root lockfile), so the filter only removes components with positive dev-dependency evidence.

The number of excluded components is recorded on the scan, and the SBOM's metadata.properties carries a trusca:scope_filter entry with per-ecosystem counts, so a filtered document self-documents what was removed. SBOMs uploaded through the ingest API are never filtered — an uploaded SBOM is the supplier's declared truth.

Two caveats worth knowing:

• cdxgen tags Maven <optional>true</optional> dependencies the same way as test scope, so a rare runtime optional dependency is dropped with them. Set SCAN_SCOPE_FILTER_MAVEN_ENABLED=false for such projects.
• Turning the filter off (SCAN_SCOPE_FILTER_ENABLED=false) restores the full resolved graph on the next scan. See Environment variables for all three toggles.

End-of-life flagging

A runtime or framework past its published end-of-life (EOL) receives no upstream fixes — a Critical CVE found tomorrow will have no patch. That is a supply-chain risk distinct from today's CVE count, so the scanner flags it separately: every scanned component is matched against a curated whitelist of products tracked by endoflife.date (Spring Boot, Spring Framework, Express, Next.js, Angular, Vue, Django, Rails, Symfony, Laravel), its release cycle is derived from the version (3.2.0 → cycle 3.2), and the cycle's published EOL is read from a snapshot bundled with the release — scans make zero network calls, so this works air-gapped.

How to read the surfaces:

• EOL column / badge — the amber EOL badge appears only when the cycle is past end-of-life. The published date rides the badge tooltip.
• Blank vs. unknown — a blank cell means the component is not a tracked product (the whitelist is deliberately closed: long-tail libraries are absent and the scanner never guesses). The drawer's End-of-life row distinguishes further: — with a tooltip saying either "not tracked" or "tracked, but the release cycle could not be determined".
• Overview chip — when the anchored scan contains EOL components the Overview tab shows a count with a one-click jump to the filtered list.
• The verdict is stored on the shared component catalog and re-evaluated when a newer snapshot arrives (release upgrades), so older projects pick up newly-published EOL dates without a re-scan.

Set EOL_ENABLED=false to turn the flagging off, or point EOL_SNAPSHOT_PATH at a fresher snapshot file on air-gapped installs — see Environment variables.

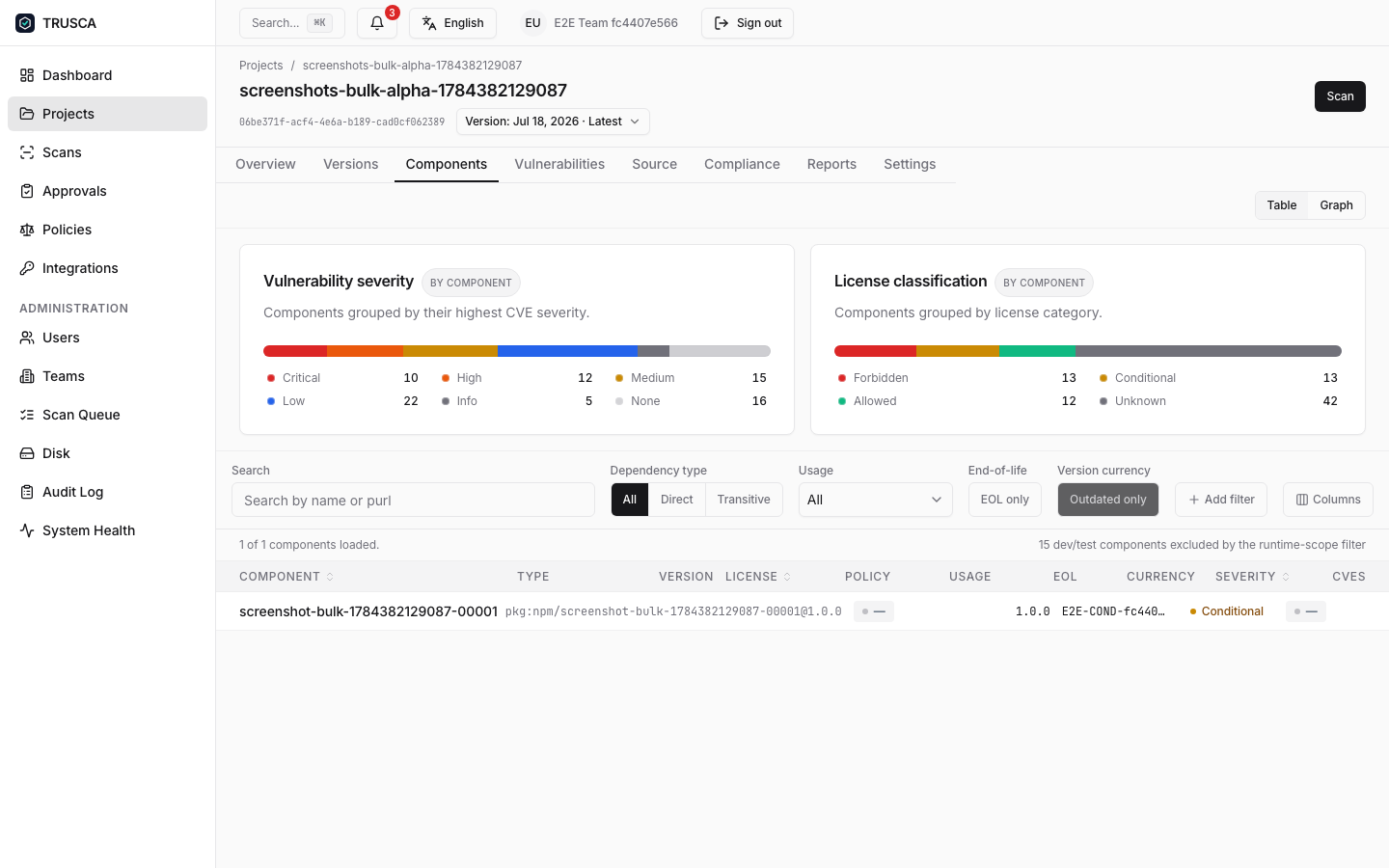

Version currency — behind the latest patch

A sibling of the EOL flag that answers a different question. EOL asks "is this release line dead?"; version currency asks "is this version behind the newest patch of its — still supported — release line?". A component can be perfectly alive on the 3.2 line and still sit three patches behind 3.2.7, quietly missing fixes that already shipped.

The signal is derived from the same vendored endoflife.date snapshot as the EOL flag (each tracked release cycle carries its latest patch version), so it is equally offline — zero network at scan time, air-gap safe — and the same closed whitelist of tracked products applies: a component outside the whitelist simply shows no currency data, never a guess.

How to read the surfaces:

• Currency column / badge — an Outdated badge, deliberately a step below the EOL tone: staleness is a hygiene signal, not a risk verdict. The tooltip carries the latest patch version (and its release date when the snapshot records one).
• Drawer row — the drawer's Version currency row distinguishes four states: on the latest patch, behind it, tracked-but-undetermined (the release cycle's latest patch could not be parsed), and no release-line data for this component.
• Overview chip — when the anchored scan contains outdated components the Overview tab shows an "N component(s) behind latest patch" chip with a one-click jump to the pre-filtered list.
• Filter — the Outdated only toggle narrows the table to outdated rows (?outdated=true).

Two boundaries worth knowing:

• The signal is release-line currency — "behind the latest patch of your line", not "behind the newest version across all lines". Moving to a newer major or minor line is an upgrade decision with breaking-change implications; this badge only points at the low-risk patch bump.
• Being outdated is not a vulnerability verdict — the CVE columns speak for themselves. An outdated component with zero findings is merely cheap to freshen; an outdated component with findings often has its fix inside that same patch bump (see the upgrade recommendation).

On the API, GET /v1/projects/{id}/components?outdated=true returns only the outdated rows, and every component carries currency_state (current / outdated / unknown, null for untracked components), currency_latest, and currency_latest_release_date.

The signal rides the EOL pipeline: EOL_ENABLED=false turns both flags off, and EOL_SNAPSHOT_PATH supplies a fresher snapshot on air-gapped installs — see Environment variables.

Table view vs. graph view

The Components tab has a Table / Graph toggle (top-left). Table is the default virtualized list above. Graph renders the scan's resolved dependency graph — every parent → child edge the scanner recorded — as an interactive node-link diagram (left-to-right layout), so you can see how a package is pulled in rather than just that it is present. Each node is coloured by its highest-severity finding (colour is never the only signal — the detail panel and the tree fallback show a severity label too), and a search box highlights matching packages. Clicking a node opens its details beside the canvas.

The choice is mirrored into ?view=graph so a reload or shared link keeps the graph open; the graph is scoped to the currently pinned ?scan= snapshot like every other tab.

Two fallbacks keep the view usable at scale:

• A scan whose graph exceeds the server node cap (DEPENDENCY_GRAPH_MAX_NODES, default 5000) is not materialised — the view shows a banner pointing you back to the table.
• A graph with no recorded edges (a flat component list) or one past the client render cap falls back to a collapsible dependency tree.

The drawer — component detail

Click any row to open a right-side drawer with:

• Identity — purl (Package URL), upstream homepage, repo URL. The two lines under purl carry the component's Type (Direct / Transitive / —) and Usage (Required / Optional / —) badges, the same values the row shows.
• All license findings — each finding carries a provenance badge (Declared / Detected / Concluded); a Detected finding also shows the source_path — the first-party file scancode found the license in. See Declared vs. detected.
• Obligations — list of obligations triggered by the component's license (see Obligations).
• CVEs — open and resolved findings, deep-linked to the vulnerability detail.

Closing the drawer keeps you in place on the table — no full-page navigation.

For the approval state of a conditional-license component, switch to the project-level Approvals page (the drawer does not surface approval state in this release). Manual override of the concluded license is also deferred — see Roadmap.

Direct vs. transitive (dependency depth)

Starting in this release the pipeline collects the dependency graph that cdxgen records (which package depends on which) and computes, for each component, its depth — the shortest distance from a graph root:

Depth	Meaning	Label
1	A direct dependency — your project declares it in its manifest / lockfile.	Direct
2 and up	A transitive dependency — pulled in only because a direct dependency (or one of its dependencies) requires it.	Transitive
(empty)	No depth was computed for this scan — older older scans that pre-date this collection, or ecosystems where the scan produced a flat component list with no graph.	—

The drawer shows the component's depth and a Direct / Transitive label; the component list surfaces the same values so you can tell at a glance which findings you own directly.

Why depth matters

A vulnerability in a direct dependency is usually yours to fix — bump the version you declared. A vulnerability in a transitive dependency is the responsibility of whichever direct dependency pulls it in; the fix is often "upgrade the direct parent until it stops requiring the vulnerable version." Depth therefore drives remediation prioritisation — shallow, directly-depended components are the cheapest to fix. The upgrade-recommendation feature builds on this signal.

Shallowest path wins

A component can be reached by several paths at once (a "diamond" — two of your dependencies both pull in the same package). The portal reports the shallowest path: if lodash is both a direct dependency and a transitive one, it is shown as Direct (depth 1). The dependency graph itself (every parent → child edge) is stored per scan so future tooling can show the full path.

License classification

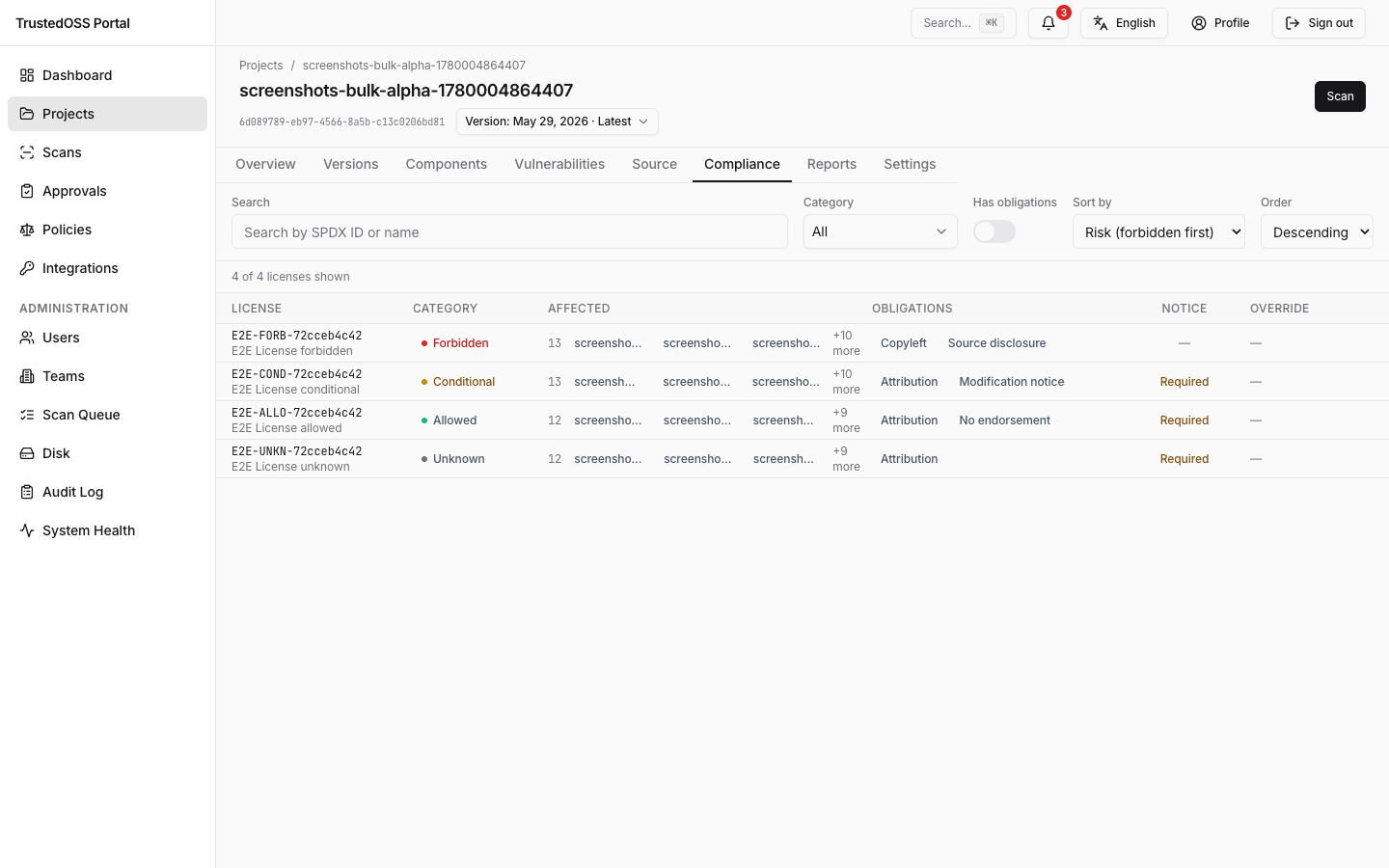

The Compliance tab on a project breaks down the same data by SPDX identifier and tier — a horizontal bar chart on top of the same table the Components tab uses, scoped to license rows (with the Has obligations toggle flipping the same surface into the obligations view; see Obligations).

Every license is classified into one of four tiers. The code value column shows the value used in API responses, audit logs, and the build gate; the UI label column is what appears in tables and badges.

Tier (code value)	UI label	Build-gate effect	Examples
permissive	Allowed	No build-gate effect.	MIT, Apache-2.0, BSD-2-Clause, BSD-3-Clause, ISC, CC0-1.0, Unlicense
conditional	Conditional	Triggers the approval workflow. Build proceeds — including after a Rejected verdict; see the approvals caveat.	LGPL-2.x, LGPL-3.x, MPL-2.0, EPL-1.x, EPL-2.0, CDDL-1.0
forbidden	Forbidden	Build gate exits 1 in CI.	AGPL-3.0, GPL-2.0, GPL-3.0, SSPL-1.0, BUSL-1.1
unknown	Unknown	Surfaced for review; no automatic block. Always needs human review.	License could not be parsed; SPDX ID not matched by the classifier — see below.

Classification source

The legal-tier classification (forbidden / conditional / permissive / unknown) is driven by a built-in SPDX-to-tier catalog. Until per-organization rule customization lands (see Roadmap), super-admins can override individual entries in-place and restart the worker — an operator-only path.

Why so many unknown?

info

Classification uses exact-match SPDX IDs. Suffix-less variants (LGPL-3.0 instead of LGPL-3.0-or-later) fall through to unknown. If a component shows unknown despite a well-known SPDX ID, the source likely emitted a deprecated alias — see Roadmap for the planned fuzzy normalization.

A separate, common cause is a manifest that names dependencies without their licenses — a bare requirements.txt or go.mod lists packages but carries no license metadata, so the scanner has nothing to classify. To fill that gap the pipeline looks the license up in the component's public registry (PyPI, Maven Central, crates.io, pkg.go.dev, RubyGems, NuGet) by package coordinate and records it as a concluded finding. This is on by default; an air-gapped deployment turns it off with LICENSE_FETCH_ENABLED=false (see Environment variables), and then such components stay unknown because the registry is unreachable.

AI license review flags

Some licenses restrict how you may use a component in ways the four-tier legal classification above does not capture — and that standard open-source compliance tooling often misses. TRUSCA surfaces two such restriction classes as an amber Review needed flag, shown next to the license tier badge and filterable on the Compliance tab.

The flag is deliberately narrow. It marks only AI-relevant restrictions the tier model (permissive / conditional / forbidden / unknown) does not already express. Ordinary open-source licenses — MIT, Apache-2.0, the BSD family, GPL / LGPL — never carry it.

Flag (code value)	UI label	What it marks	Example licenses
behavioral_use	Behavioral-use restriction	The license forbids specific uses of the software or model — for example military, surveillance, or discriminatory applications — rather than restricting redistribution.	RAIL (Responsible AI License) and OpenRAIL variants; the Llama, Gemma, and Falcon community model licenses.
non_commercial	Non-commercial only	The license permits research or personal use but forbids commercial use.	CC-BY-NC (Creative Commons Attribution-NonCommercial) and its ShareAlike / NoDerivatives variants; other non-commercial source-available terms.

The flag reports existence, not applicability

A Review needed flag tells you a restriction of that class exists in the license — not that your particular use violates it. Whether a behavioral-use clause or a non-commercial clause actually applies to how your project uses the component is a legal and business judgment a person makes, not the scanner. TRUSCA follows the principle behind the BomLens license-flags.jq rules and the OpenChain AI SBOM guidance: the tool flags the class of restriction; a human decides whether it applies.

Behavioral-use and non-commercial restrictions travel with AI models and datasets far more than with conventional code, and they sit outside the redistribution-centric logic of the SPDX legal tiers — so a permissive-looking tier alone can hide them. The flag makes the restriction visible without adjudicating it.

Reading the flag

• On the Compliance tab, a flagged license row shows an amber Review needed badge next to its tier badge. Narrow the table to just those rows with the Review needed filter, alongside the license-category multi-select.
• The flag is advisory: it never blocks a build and never changes the legal tier. A component can be tier permissive and still carry a Review needed flag.
• Flagged licenses also appear in a dedicated "License review needed" section of the generated NOTICE document — see SBOM → NOTICE file.

Declared vs. detected

Each license finding has a kind that tells you where the license came from. The kind shows as a provenance badge in the components table, the Licenses tab, and the component drawer, and you can filter the Licenses tab by it.

Kind	Source	What it tells you
Declared	cdxgen — read from a dependency's published package metadata (package.json, pom.xml, setup.py, …).	The license the dependency's author says it ships under. This is the value the build gate evaluates. Most dependency findings are declared.
Detected	scancode — scans your project's first-party source files directly. Each detected finding carries a source_path (the file the license text was found in).	The license actually present in your own code. This catches cases the metadata misses — for example a dependency declared MIT but with GPL-3.0-licensed code copied into your tree.
Concluded	The multi-ecosystem registry fetcher (Maven Central / PyPI / crates.io / pkg.go.dev / RubyGems / NuGet), used as a fallback only when cdxgen produced no SPDX id for a dependency.	A registry-derived license for a dependency whose own metadata was silent. It is not the result of reconciling declared and detected — v0.10.0 does not perform automatic reconciliation.

"Detected" means first-party, not dependency source

scancode runs over your own source tree only. Third-party dependency sources are deliberately not downloaded — that keeps per-scan runtime within budget. So a dependency's license is declared (or concluded via the registry fallback), never detected; detected licenses always describe code in your repository.

Declared and detected can disagree

A component can carry both a declared finding (e.g. MIT from metadata) and a detected finding (e.g. GPL-3.0 from a source file). v0.10.0 surfaces both side by side and does not auto-reconcile them into a single verdict — review the conflict yourself. A GPL-3.0 detected inside a project you ship as MIT is exactly the kind of contamination the detected scan exists to surface.

When detected licenses are missing

scancode is best-effort. Detected licenses can be absent — which is normal and non-fatal; the scan still succeeds with declared licenses — when:

• scancode is not installed in the worker image.
• The first-party tree exceeds the SCANCODE_MAX_FILES ceiling, scancode timed out, or its result was too large.
• The relevant code lives inside an excluded directory. To stay within the resource budget, scancode skips directories named node_modules, vendor, bower_components, .venv, venv, virtualenv, site-packages, dist, build, target, out, .next, .nuxt, __pycache__, .gradle, .git, .hg, .svn, .tox, .mypy_cache, .pytest_cache, .ruff_cache, .idea, and .vscode — at any depth. Code committed under one of these names will not produce a detected license.

Vendored-OSS identification (SCANOSS)

Some projects — C / C++ and embedded trees especially — carry open source copied straight into the source tree with no package manifest (a liblzma, openssl, or zlib folder committed under src/). cdxgen sees only unnamed pkg:generic files there and the real OSS goes unrecorded. SCANOSS closes that gap: it fingerprints the source files and matches them against a knowledge base of known OSS releases, so a copied file is recorded as a proper component (name + version + purl) with its detected license.

TRUSCA treats only full-file matches as components — a snippet match (a few lines copied from elsewhere) is noisy and is skipped, so the components that feed the build gate and NOTICE stay clean. Matched components appear on the Components tab tagged as coming from SCANOSS, and their licenses are Detected findings, exactly like scancode's.

Off by default — sends fingerprints to an external service

SCANOSS is disabled unless an operator sets SCANOSS_ENABLED=true. When enabled, it sends file fingerprints (hashes, never your source code) to SCANOSS_API_URL — the free api.osskb.org by default. Because a self-hosted portal shouldn't quietly egress data about your code, this is opt-in: turn it on only if that external match is acceptable, or point SCANOSS_API_URL at a self-hosted SCANOSS instance to keep everything inside your network. See Environment variables → Scan pipeline.

Like scancode, the stage is best-effort: if SCANOSS is off, the tool is missing, the endpoint is unreachable, or nothing matches, the scan simply continues without vendored-OSS results — it never fails because of this stage.

Obligations

Each license carries obligations — duties you must honor when redistributing the component. The portal tracks seven kinds (see glossary):

• Attribution — preserve the upstream copyright notice.
• NOTICE preservation — carry the upstream NOTICE file (Apache-2.0 §4(d)).
• Source disclosure — make the corresponding source available on demand.
• Copyleft — release derivative works under the same license terms.
• Modifications — state changes prominently in modified files.
• Dynamic linking — LGPL-style: end-users must be able to relink against a modified library.
• No endorsement — do not use the project name to endorse derivatives without permission.

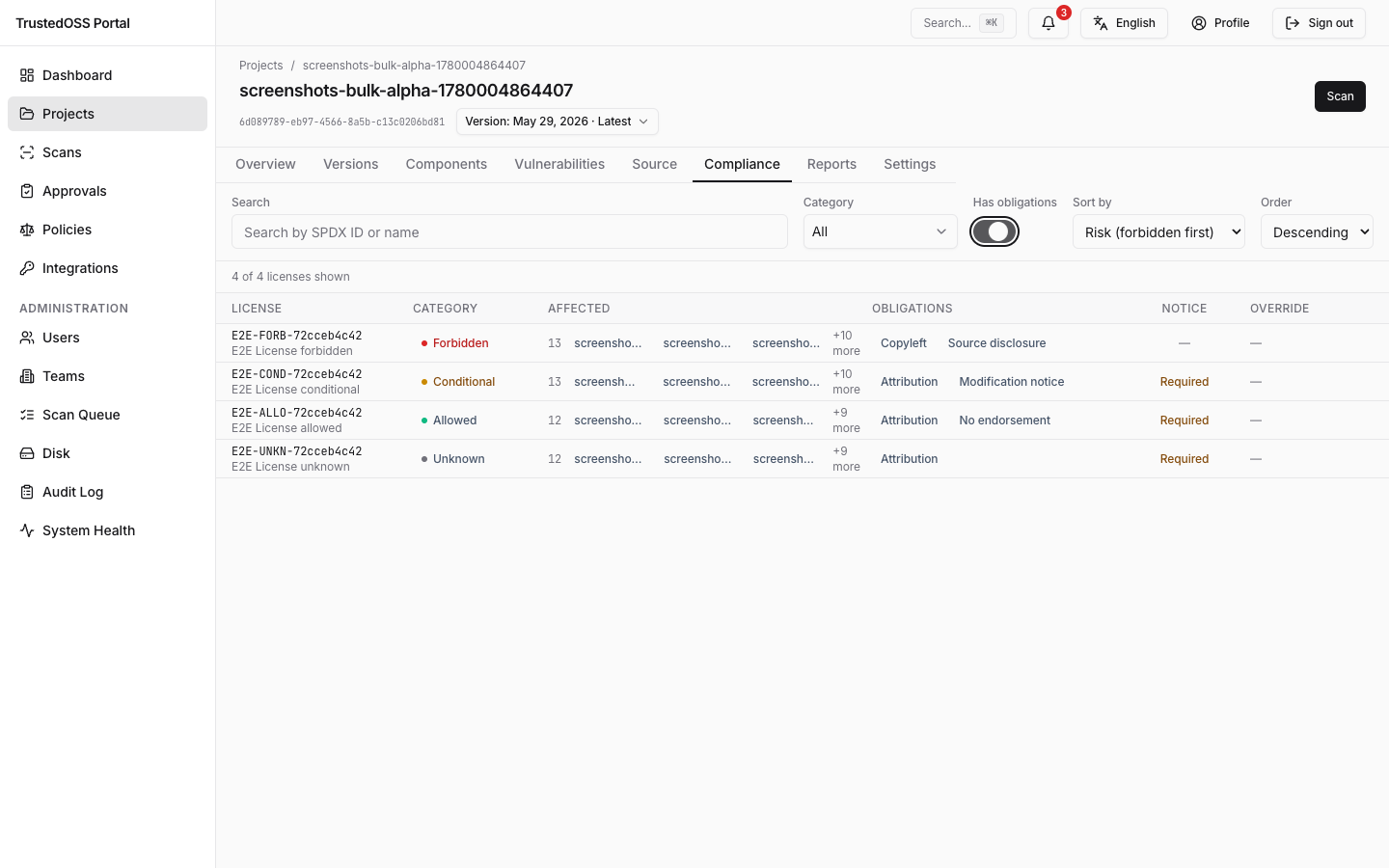

The Compliance tab with the Has obligations toggle on consolidates obligations across components. Pick a NOTICE format (text or HTML) on the toolbar and click Download NOTICE to save a NOTICE document summarizing every attribution and license. The endpoint also serves a markdown variant via the API. The document carries a copyright line per component (falling back to the component's registry URL when the SBOM recorded no holder) and closes with a License Texts section embedding the full text of every license in the project — so the license_text_inclusion_required obligation is satisfied by the NOTICE itself. See SBOM → NOTICE file for the format / MIME / extension table and the section-by-section contents.

Obligation kinds in this release

The obligations catalog covers the seven kinds listed above. Some AGPL / SSPL / BUSL-specific obligations are not modeled as discrete kinds yet:

• Network-use disclosure (AGPL §13, SSPL §13) — required when end-users interact with modified software over a network.
• Patent grant termination (Apache-2.0 §3, MPL-2.0 §5.2).
• Trademark restrictions (Apache-2.0 §6, BSD-4-clause).
• Field-of-use restrictions (BUSL-1.1).

For these, see the underlying license text via the component drawer (see Roadmap).

Korean license content

When the interface language is Korean, the license summary (the plain-language "what does this license ask of me?" line in the license drawer) and the obligation text are shown in Korean for every license in the classification catalog. Licenses outside the catalog (LicenseRef-*, compound expressions the catalog does not fully cover) fall back to English.

The English text is authoritative

The Korean rendering is an advisory reading aid, not a legal instrument. Each translated summary and obligation exposes a Show the original English disclosure so you can read the authoritative wording, and the canonical license text — the full SPDX text bundled in the NOTICE file's License Texts section — is never translated. Rely on the English text for legal review.

SPDX expressions

Licenses are identified by SPDX identifiers. Compound licenses use the SPDX expression syntax:

• (MIT OR Apache-2.0) — dual-licensed; either is acceptable.
• (GPL-2.0+ WITH Classpath-exception-2.0) — GPL with an exception.
• LicenseRef-proprietary — non-SPDX license, parsed but not classified.

Hovering an expression in the UI shows the SPDX URL for each component license.

Verify it worked

After a successful scan:

1. Component count matches your expectation (close to the count of pinned dependencies in your lockfile).

2. The classification distribution horizontal bar chart on the Overview tab adds up to 100%.

3. Forbidden-license components, if any, are highlighted in red and have a CTA to the approvals queue.

Troubleshooting

Many components show Unknown license

The license could not be parsed, or the SPDX ID was not in the classifier's exact-match dictionary (see Why so many unknown?). Common causes:

• The package has no LICENSE file and no metadata declaration (rare in well-maintained ecosystems).
• A custom license string the classifier does not recognize. The component drawer surfaces the raw string for legal review.
• The source emitted a deprecated SPDX alias (e.g. LGPL-3.0 instead of LGPL-3.0-or-later); the exact-match dictionary does not yet normalize these.
• Metadata fetch failed for that ecosystem. Check docker-compose logs worker for cdxgen per-ecosystem warnings.

Classification looks wrong

Classification is driven by the built-in SPDX-to-tier catalog (see Classification source above). For a one-off override today, a super-admin can patch the catalog and restart the worker; per-organization customization is tracked on the Roadmap. If the catalog entry is correct but a detected license disagrees with the declared one, review both findings in the component drawer (see Declared vs. detected).

Lockfile not detected

cdxgen supports 30+ ecosystems but new ones land regularly. Confirm the project's lockfile is at the repo root or one level below; cdxgen does not recurse arbitrarily deep. If the ecosystem is unsupported, file an issue with the pipeline output.

Roadmap

Items the manual previously promised that are not in this release; tracked for later releases.

• Standalone Type (ecosystem) and Classification columns on the components table — for v0.10.0 the type is encoded inside the purl shown in the drawer's Identity row, and the classification surfaces via the Severity color legend.
• Exact-SPDX License filter and Has open CVE toggle — planned; the current License category multi-select and the search box cover most workflows.
• Approval status row inside the component drawer — planned; the project-level Approvals page is the source of truth today.
• Manual Override concluded license action in the drawer (team_admin) — planned.
• Fuzzy SPDX normalization for suffix-less variants (LGPL-3.0 → LGPL-3.0-or-later) — planned.
• Per-organization license-classification rule customization — planned; today classification uses the built-in catalog.
• Richer obligation taxonomy (network-use disclosure, patent-grant termination, trademark restrictions, field-of-use) — planned; today these are read from the license text via the drawer.

See also

• Vulnerabilities
• Approvals
• SBOM — including the Compliance evidence trail
