SBOM

The portal generates Software Bill of Materials (SBOM) artifacts from the latest successful scan. Four interchange formats are supported, plus an attribution NOTICE file.

Export vs. upload

This page is about exporting an SBOM that TRUSCA generated from a scan. To go the other way — upload an SBOM your own tooling already produced (CycloneDX or SPDX) so TRUSCA matches CVEs and scores its conformance — see Upload an SBOM and Scans → SBOM upload.

Audience

Engineers shipping releases, compliance leads filing artifacts, customers fulfilling SBOM requests under EO 14028. Read access via team membership.

Supported formats

Format	Query value (format=)	MIME	Use case
CycloneDX 1.6 (JSON)	cyclonedx-json	application/vnd.cyclonedx+json	Modern de-facto standard for SCA tooling. Includes VEX.
CycloneDX 1.6 (XML)	cyclonedx-xml	application/vnd.cyclonedx+xml	Same data; XML for legacy tooling.
SPDX 2.3 (JSON)	spdx-json	application/spdx+json	NTIA minimum elements; broadly accepted in regulated industries.
SPDX 2.3 (Tag-Value)	spdx-tv	text/spdx	The original SPDX line-based format.

Both formats are produced from the same internal model, so component lists are identical (modulo format-specific fields).

What's included per component

Each component carries its name, version, Package URL (PURL), and the licenses detected for it:

• Licenses — populated from the scan's license findings. CycloneDX uses the per-component licenses array (preferring the concluded verdict, then declared, then detected); SPDX fills licenseDeclared and licenseConcluded as SPDX license expressions. Components with no detected license — and licenses with no SPDX identifier (ORT LicenseRef-*) — emit the spec sentinel NOASSERTION in SPDX (CycloneDX still carries the license name). copyrightText is currently always NOASSERTION.
• Top-level version — metadata.component.version reflects the scanned release: if the scan was submitted with a release label (e.g. v1.2.3), that label is used; otherwise the scan id is used as a stable fallback.

Byte-stable output

All four exports are byte-stable: re-exporting the same scan produces identical bytes. This makes diffing, signing, and caching trivial.

The portal achieves byte-stability by:

• Sorting components by purl (lexicographic).
• Sorting license expressions alphabetically within each component.
• Pinning serialNumber (CycloneDX) / documentNamespace (SPDX) to a deterministic value derived from (project_id, scan_id).
• Omitting timestamps from the body (the SBOM's metadata records the scan finish time, which is stable per scan).

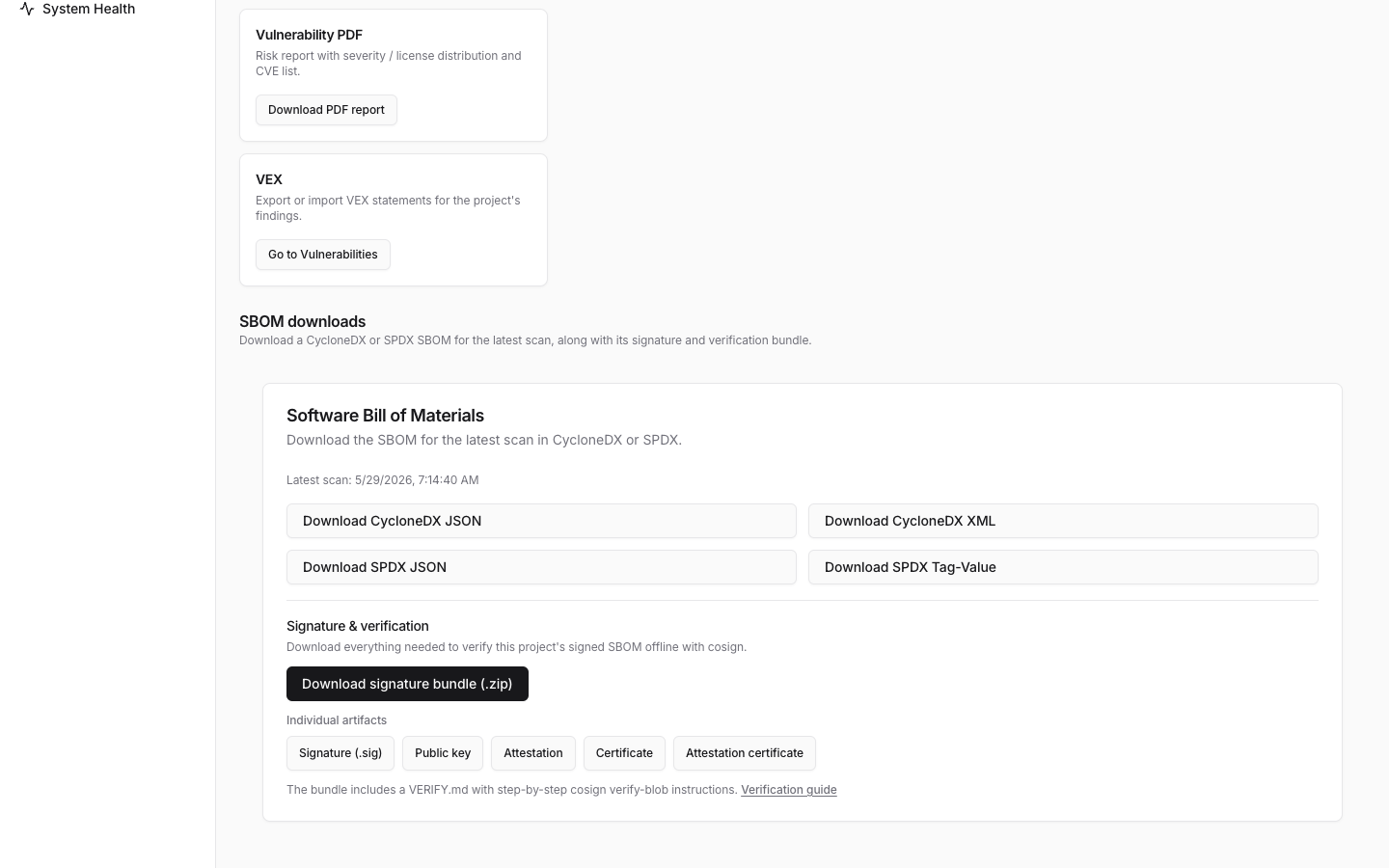

Download from the UI

1. Open the project.
2. Click the SBOM tab.
3. Click one of the four format buttons (CycloneDX JSON, CycloneDX XML, SPDX JSON, SPDX Tag-Value) to download.

The file name is sbom-<project-slug>.<ext>.

Download from the API

The API serves the SBOM in CycloneDX JSON:

…and in SPDX JSON (same endpoint, different format):

# CycloneDX JSON
curl -sS -L -OJ \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/sbom?format=cyclonedx-json"

# SPDX JSON
curl -sS -L -OJ \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/sbom?format=spdx-json"

format accepts: cyclonedx-json, cyclonedx-xml, spdx-json, spdx-tv.

Endpoint always exports the latest succeeded scan's SBOM; pinning to a specific historical scan id is on the roadmap.

Audit evidence — pin scans externally

The SBOM export always reflects the latest succeeded scan. External auditors typically ask for the SBOM at a specific release point (e.g. "what shipped on 2026-01-15?"). Until historical-scan pinning lands, capture the SBOM artifact at each release boundary and store it in your release archive. Treat the portal as the current SBOM, not the historical one.

Policy profiles

By default the export is the raw inventory. An optional policy profile applies your team's license policy to the export, so a distribution SBOM reflects your organization's rules:

• Policy annotated — every violating component is flagged in place without removing anything. CycloneDX components gain trusca:policy:category / trusca:policy:spdx properties; SPDX packages gain a REVIEW annotation. Forbidden and conditional components are annotated, so a reviewer sees why each is a concern inside the SBOM.
• Policy filtered — forbidden components are dropped from the export (along with the vulnerability entries that referenced them), and the number removed is recorded on the document (trusca:policy:excluded_count / a document annotation).

When no team or organization policy is configured, the profile falls back to the built-in classification catalog, so a forbidden GPL is still flagged.

Select the profile on the SBOM tab, or pass profile on the API:

curl -sS -L -OJ \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/sbom?format=cyclonedx-json&profile=policy-annotated"

profile accepts: policy-annotated, policy-filtered. A profiled download is named distinctly (sbom-<project>-<profile>.<ext>) so it is never mistaken for the canonical export.

Profile exports are not signed

The cosign signature covers only the default SBOM — the exact bytes produced at scan time. A policy profile is generated on demand and therefore has no signature; cosign verify-blob against a profiled export will fail. Use the default export when you need a verifiable, signed artifact, and treat profiled exports as review / distribution conveniences.

NOTICE file

For Apache-2.0 §4(d) compliance and similar attribution obligations, the portal auto-generates a NOTICE attribution body from the project's latest scan.

The file contains:

• A header with the project name and generation timestamp.
• One section per detected license, listing the components (name @ version) under that license, each with a copyright line.
• Each license section's attribution obligations (e.g. attribution, no-endorsement) with a short description and a policy reference link.
• A closing License Texts section with the full text of every license observed in the project.
• A License review needed section listing any component whose license carries an AI-specific restriction flag (behavioral-use or non-commercial); see AI license review flags.

Copyright lines

Each component entry carries the copyright statement the scan's SBOM recorded for it (cdxgen reads it from package metadata). When the SBOM recorded no copyright holder, the line is never left blank: it falls back to an explicit note that the SBOM carries no copyright holder, pointing at the component's registry URL so you can retrieve the statement from the source. A manual per-component override in the component drawer is on the roadmap.

License texts

The document closes with a License Texts section reproducing the full canonical text of each license that appears in the project. The portal bundles the SPDX (Software Package Data Exchange) text for 32 well-known licenses — MIT, Apache-2.0, and the BSD, GPL / LGPL / AGPL, MPL, EPL, and CDDL families, among others. A license whose text is not bundled is not silently dropped: its entry falls back to the license's reference-URL link to the canonical text. With this section the NOTICE artifact itself satisfies the catalog's license_text_inclusion_required obligation — see the obligation catalog.

Supported formats

The NOTICE endpoint accepts a format query value (default text):

Format	Query value (format=)	MIME	Extension	Use case
Plain text	text	text/plain	.txt	Drop into a release tarball's NOTICE file. The default.
Markdown	markdown	text/markdown	.md	Render in a docs site or PR description.
HTML	html	text/html	.html	A self-contained document (inline <style>, no scripts) for an attribution page.

The output is byte-stable across exports for a given scan and format — diffable across releases.

Download

• UI: Project → Obligations tab → pick a format (text or HTML) → Download NOTICE. The browser saves NOTICE-<project>.<ext>. The markdown variant is available from the API.

• API:

  # Plain text (default)
  curl -sS -L -OJ \
    -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
    "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/notice?format=text&download=true"

  # HTML
  curl -sS -L -OJ \
    -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
    "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/notice?format=html&download=true"

  format accepts text, markdown, html. Pass download=true so the response carries Content-Disposition: attachment and -OJ saves it under the server-supplied file name (NOTICE-<project>.<ext>); omit it to stream the body inline.

VEX exports

CycloneDX SBOMs include the project's VEX state for every finding. SPDX does not have a native VEX representation, so SPDX exports omit per-finding state; pair an SPDX export with a separate CycloneDX VEX document if your downstream consumer expects it.

Each entry in the SBOM's vulnerabilities[] array carries the CVE id, its source database, the VEX analysis, and affects[].ref pointing at the affected component's bom-ref within the same document (so consumers can join findings to components without parsing PURLs).

The VEX states map directly to CycloneDX's analysis.state; the analyst's free-text note (when present) is carried in analysis.detail:

Portal state	CycloneDX VEX state	analysis.detail
New	in_triage	(none)
Analyzing	in_triage	analyst note
Exploitable	exploitable	analyst note
Not affected	not_affected	analyst note
False positive	false_positive	analyst note
Suppressed	not_affected	analyst note
Fixed	resolved	analyst note

The closed CycloneDX analysis.justification enum (code_not_present, …) is never emitted: its members have a precise meaning that cannot be inferred from free-form analyst prose, so the note stays in analysis.detail.

Verify it worked

1. The downloaded SBOM passes a validator — for CycloneDX, run cyclonedx validate:

   cyclonedx validate --input-file checkout-service.sbom.json

2. SPDX validates with spdx-tools:

   pyspdxtools -i checkout-service.sbom.json

3. Re-downloading the same scan produces a byte-identical file:

   sha256sum checkout-service.sbom.json checkout-service.sbom.json.again
   # → identical hashes

Troubleshooting

Empty SBOM when no scan has succeeded yet

If the project has no succeeded scan yet, the export still returns a valid SBOM document with empty components/packages lists (HTTP 200) so downstream tooling can parse it.

422 from /sbom?format=…

The query string used a value the API does not accept. Use one of the four canonical query values from the table above — in particular, the SPDX Tag-Value format is spdx-tv (not spdx-tag-value).

404 for a project you cannot access

The SBOM and NOTICE endpoints existence-hide: a caller who is not a member of the project's team receives 404 (not 403), the same response as a project id that does not exist. This is deliberate — unlike the project-detail endpoint (which returns 403), the SBOM/NOTICE bodies expose structural detail (component names, versions), so the endpoints refuse to confirm a project even exists to a non-member. Join the owning team to get access.

A copyright line shows a registry link instead of a holder

The scan's SBOM recorded no copyright holder for that component — cdxgen found none in the package metadata. The NOTICE never leaves the line blank; it notes the missing holder and points at the component's registry URL instead, so you can retrieve the copyright statement from the upstream source directly. A manual per-component override in the component drawer is on the roadmap. The SPDX export is a separate surface and still emits copyrightText: NOASSERTION.

Compliance evidence trail

External auditors typically ask portal operators five questions. This table tells you which are answerable today and which require workarounds.

Auditor question	v0.10.0 answer source	Limitation
"Show me the SBOM as of release X"	Manual archive; portal only retains latest	Historical pinning on the roadmap
"Who downloaded the SBOM / NOTICE in the last quarter?"	structlog (Loki / journald) — not audit_logs	Audit-row promotion on the roadmap
"Show me when GPL was first detected on project X"	audit_logs on scans.create + per-scan vulnerability_findings.create	Yes — full evidence chain
"Show me every approval verdict in 2026 Q1"	audit_logs on component_approvals.update + decision_note	Yes — full evidence chain
"Prove no audit row was tampered with"	Append-only trigger (migration 0012)	Super-admin role still has bypass — review audit-log hardening

Supplier submission compatibility

The export satisfies common corporate supplier SBOM requirements (e.g. SK Telecom's supplier guide): standard format/version (CycloneDX, SPDX 2.3), ISO-8601 timestamp, tool metadata, per-component name + version + PURL, licenses, and transitive dependencies (when the scanned source includes or can resolve lockfiles).

Two caveats to be aware of before submitting:

• pkg:generic/ PURLs are rejected by some programs. A generic PURL means the scanner could not classify the component's ecosystem; supply lockfiles / build artifacts so cdxgen can assign an ecosystem-specific type.
• Licenses without an SPDX id appear as NOASSERTION in SPDX expressions (the CycloneDX license.name still carries the label).

Roadmap

Items the manual previously promised that are not in this release; tracked for later releases.

• The vulnerability report is implemented — as PDF, and since v0.13.0 also as Excel (.xlsx); see Vulnerabilities → Download a report (PDF or Excel) (GET /v1/projects/{id}/vulnerability-report.pdf / .xlsx). Still not implemented: a standalone Components Excel export and the Compliance PDF; those will land in a later release. Stakeholders who need a components table today should consume the SBOM (CycloneDX JSON) via their preferred tooling.
• Manual copyright override in the component drawer for NOTICE assembly — planned.
• Historical-scan pinning on the SBOM and NOTICE exports — planned.
• Promote SBOM / NOTICE downloads from structlog events to audit_logs rows — planned.
