Vulnerabilities

The Vulnerabilities tab lists every open CVE (Common Vulnerabilities and Exposures) the scan pipeline correlated against the project's components. Findings persist across scans — once a CVE is found, it stays in the project's history with its status and triage notes until the underlying component is removed or upgraded.

Project detail — Vulnerabilities tab with severity filter and per-row CVE links

Audience

Engineers triaging individual findings; security leads tracking SLA. Mutating the VEX status requires developer or higher; bulk suppression requires team_admin.

"Vulnerability data unavailable" banner​

A blue Vulnerability data unavailable banner appears at the top of the Vulnerabilities tab when the portal can show you the components a scan discovered but no findings — typically because the local Trivy DB has not finished downloading yet (a fresh deployment whose worker just booted), or the DB download failed. The banner explains the cause and lists the next steps:

  • An admin should check the worker's Trivy DB on disk — see Vulnerability data — Verify it worked for the exact command. The forthcoming Vulnerability data card under /admin/health (roadmap) will surface freshness in the UI.
  • Once the Trivy DB lands, the automatic re-match beat picks up findings on every project's most-recent SBOM — no in-app action is required from you. The banner clears automatically on the next page load that returns at least one finding.

The banner is informational, not an error — 0 findings on a project that is actually clean looks identical at the API level, so the message intentionally points you at the diagnostic surfaces instead of asserting a verdict.

Severity model​

SeverityColor tokenCVSS v3 (typical)Build gate
Critical#dc26269.0–10.0Exits 1 (default)
High#ea580c7.0–8.9Configurable per project
Medium#ca8a044.0–6.9No effect
Low#2563eb0.1–3.9No effect
Info#71717a—No effect

The default policy fails the build only on Critical. Project owners can lower the threshold to High per project.

VEX state machine​

Findings follow the CycloneDX VEX (Vulnerability Exploitability eXchange) seven-state model. Each finding starts in New and transitions as analysts triage it.

StateDefinitionBuild gate
NewJust discovered; not triaged.Counts.
AnalyzingTriage in progress.Counts.
ExploitableConfirmed exploitable in this project's context.Counts.
Not affectedComponent is present but the vulnerable code path is unreachable.Excluded.
False positiveDetection is wrong (e.g., wrong purl).Excluded.
SuppressedOperator-silenced (not_affected with explicit suppression).Excluded.
FixedResolved (component upgraded or patch applied).Excluded.

Transitions are logged in the audit log with actor, previous status, new status, and the required justification message.

Required justification​

Every transition out of New / Analyzing requires a free-text justification (≥ 10 chars). The portal stores the justification verbatim — keep it factual ("upgraded lodash to 4.17.21", "vulnerable code path is in dev_only module"). The text appears in CycloneDX VEX exports.

The findings table​

Columns:

  • CVE — the CVE-YYYY-NNNN identifier (plain text; click-through to NVD is on the roadmap).
  • Severity — color-coded badge.
  • CVSS — numeric CVSS v3 score from the upstream feed.
  • EPSS — the EPSS probability rendered as a percentage (for example 97.3%). CVEs without an EPSS value show —. See EPSS — exploitation probability.
  • KEV — a badge shown when the CVE is listed in the CISA KEV (Known Exploited Vulnerabilities) catalog, together with the catalog's remediation due date. See KEV — known exploited vulnerabilities.
  • Title — short summary from the advisory.
  • Affected — the affected component (name@version).
  • Status — current VEX status.
  • SLA due — the remediation-SLA due date, graded Overdue / Due soon / On track; — when the severity carries no SLA. See Remediation SLA and aging.
  • Discovered — when this scan recorded the finding. A re-scan resets it; the SLA clock uses First detected instead — see First detected vs. Discovered.

Filters on the inline bar: severity, status, an EPSS threshold filter (min_epss), an SLA state filter (sla), plus a search box (free text against CVE ID / title / component) and sort + order controls. The default sort is Priority — KEV-listed findings first, then severity, then EPSS; see Priority sort. The sort control also includes EPSS (sort=epss) and SLA due (sort=sla_due); rows without a value for the chosen key sort last.

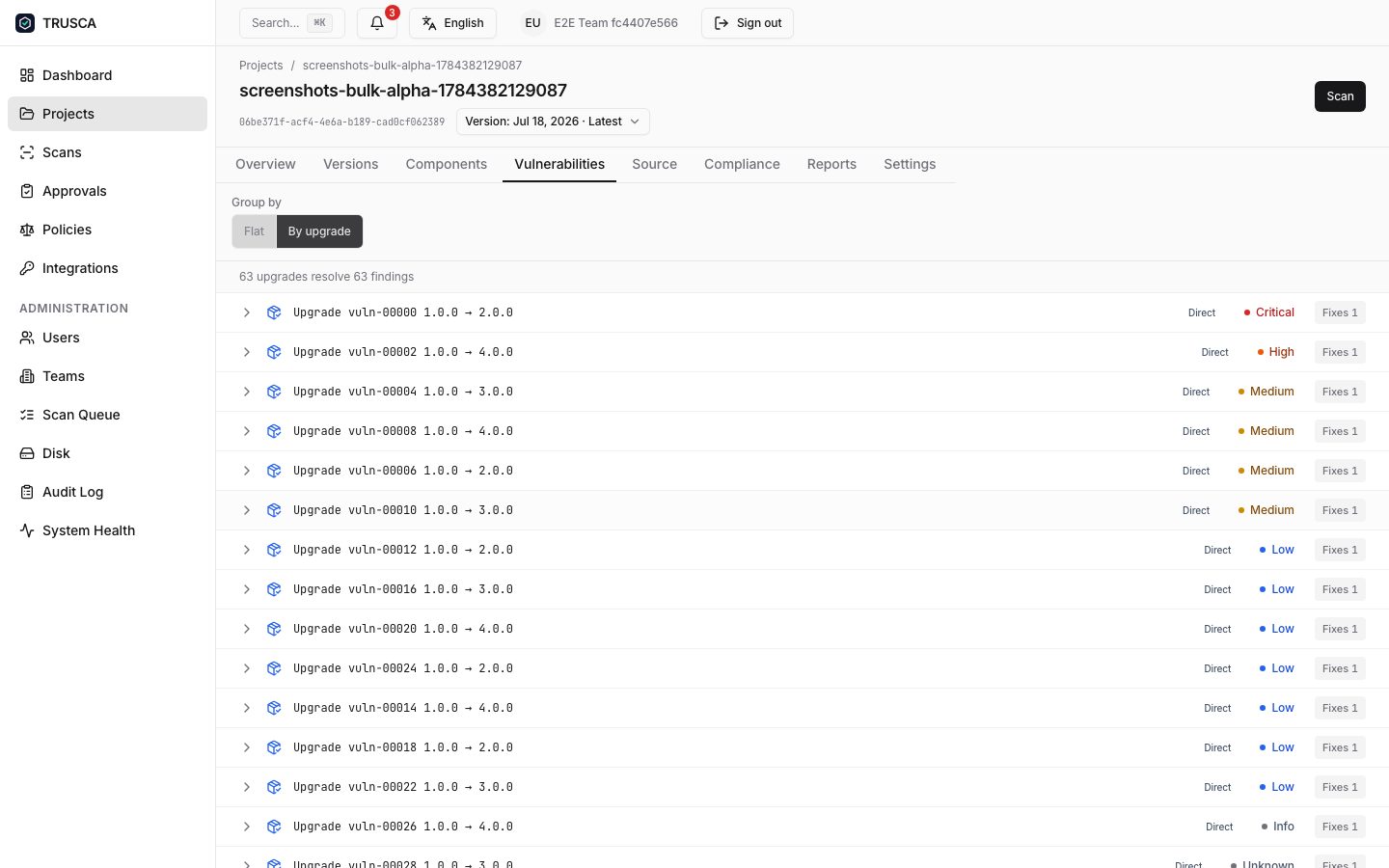

The toolbar also carries a Group by control that swaps the flat findings table for the upgrade-centric remediation worklist — see Group by upgrade.

The drawer — finding detail​

Click any row to open:

  • Summary — title, description, CWE, CVSS vector, and the EPSS score and percentile when the Trivy DB supplies them (otherwise —). See EPSS — exploitation probability. A finding whose CVE is in the CISA KEV catalog also shows the KEV badge and the remediation due date here — see KEV — known exploited vulnerabilities. The summary also carries the SLA chip (due date plus the Overdue / Due soon / On track state) and a First detected row — the start of the SLA clock; see Remediation SLA and aging.

  • References — vendor advisories, fix commits, exploit databases.

  • Affected — the upstream-reported affected range with the project's component version highlighted, plus the fixed version — the version that remediates this CVE for this component — when the scan pipeline could determine one. See Fixed version — the version that remediates the CVE. The affected component also carries its dependency depth: whether it is a direct dependency you declared (depth 1) or a transitive one pulled in by another package (depth 2+). A CVE in a direct dependency is usually yours to fix by bumping the declared version; a CVE in a transitive dependency is fixed by upgrading the direct parent that requires it — see Direct vs. transitive (dependency depth).

  • Analysis — VEX status action buttons. The buttons you see depend on the finding's current state. Every terminal decision is routed through the analyzing state, so a brand-new finding cannot jump straight to a verdict:

    • new (just discovered) → Mark in triage (analyzing) or Mark suppressed (suppressed). You cannot go directly to "not affected" / "exploitable" / "false positive" / "fixed" — triage first.
    • analyzing (working state) → the five verdicts: Mark exploitable, Mark not affected, Mark false positive, Mark fixed, Mark suppressed.
    • any terminal state (exploitable / not_affected / false_positive / fixed / suppressed) → Reopen back to analyzing to re-triage.

    Click a button to open the justification dialog and submit. Moving into suppressed requires team_admin or higher (suppression is gated to keep the audit trail clean); every other transition is developer or higher.

  • History — VEX status-transition timeline (who changed the status, when, with what justification).

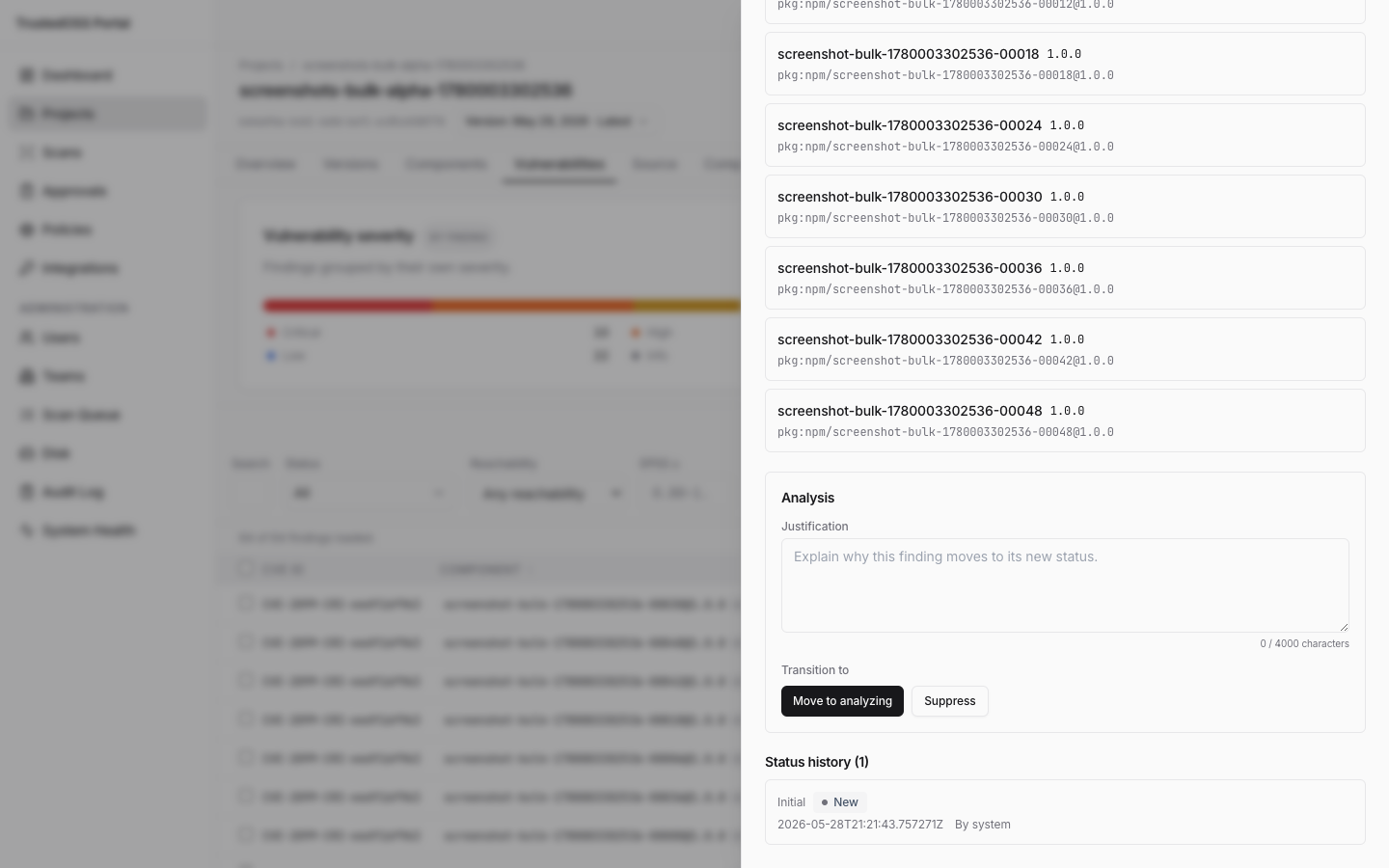

Vulnerability drawer — Analysis section with VEX action buttons and justification textarea

Bulk-transition findings​

When several findings share the same disposition — for example, ten findings all on the same library that you've just upgraded — the toolbar's Bulk action bar lets you transition them in one shot instead of opening each drawer.

Bulk action bar — selected-count + Set status to + Apply / Clear, shown after ticking two rows

  1. Tick the row-level checkboxes (or the header tri-state checkbox to select every row on the current page — selection clears automatically when you change filter or page so a stale selection cannot leak across views).
  2. The action bar at the top of the table shows the selected count and the available verdicts for the common current state of the selected rows. If the selection mixes states whose legal next-state intersection is empty, the verdict buttons are disabled with a tooltip explaining why.
  3. Pick a verdict, enter the justification once (the same text is applied to every row), and submit.

The response is per-row: every selected finding gets an outcome in the result alert. Each row carries success, an HTTP-style status_code, and a machine-readable error code. The codes are:

  • transitioned — success: true, status_code: 200, error: null. The status actually flipped.
  • already_at_target — success: true, status_code: 200, error: "already_at_target". The row was already in the requested status; an idempotent no-op is a success, not a failure (it just writes no audit row).
  • invalid_transition — success: false, status_code: 422. The move is not allowed by the workflow matrix; the row carries allowed_to listing the legal next states.
  • forbidden — success: false, status_code: 403. The actor's role is insufficient (e.g. a developer moving a row to Suppressed).
  • not_found — success: false, status_code: 404. The id is not a finding in this project.

The envelope's succeeded / failed counts sum these (already_at_target counts as succeeded). The page reloads the table once the alert closes so the new states are reflected.

Server-side the request is a single POST /v1/projects/{id}/vulnerabilities:bulk-transition call with the selected finding ids, a target status, and the justification. The endpoint runs the same state-machine guard as the per-row endpoint and emits one audit-log row per actually-transitioned finding. The cap is 200 ids per call — for selections larger than that, page through and submit in chunks.

Suppressed transitions still require team_admin

The bulk endpoint does not widen the permissions of the per-row endpoint. Moving any selected finding into Suppressed still requires team_admin (or higher) on the project's team — a developer submitting a bulk request that includes a → Suppressed transition will see those rows reported as forbidden (status_code: 403) while the other rows in the same submission complete normally.

EPSS — exploitation probability​

The portal surfaces the EPSS (Exploit Prediction Scoring System) score next to CVSS so you can tell severe CVEs apart from likely-to-be-attacked CVEs.

EPSS vs. CVSS — what each one answers​

  • CVSS measures severity — the theoretical impact if a CVE is exploited. It does not say whether anyone is, or will, exploit it.
  • EPSS measures the probability of real-world exploitation in the next 30 days, as a number from 0 to 1.

The two are complementary. It is common to find a CVE with CVSS 9.8 (Critical) and an EPSS of 0.01 — severe on paper, but with a low predicted chance of being attacked. Sorting and filtering by EPSS lets you concentrate on the small set of findings that are actually dangerous and cut the noise.

EPSS is best-effort

EPSS data is sourced from the Trivy DB and is present only for CVEs Trivy supplies an EPSS value for. Findings without an EPSS value show — in the UI and null in the API — treat a missing EPSS as "unknown", not "low". EPSS never replaces CVSS or your VEX triage; it is one more signal.

How the portal displays EPSS​

  • Score — rendered as a percentage. An EPSS of 0.973 shows as 97.3%.
  • Percentile — rendered as "top N%". A finding in the 99th percentile shows as roughly "top 1%", meaning its score is higher than ~99% of all scored CVEs.
  • Missing — — (the Trivy DB has no EPSS value for this CVE).

The score and percentile appear in the findings table's EPSS column and in the drawer's Summary section.

Sort and filter by EPSS​

  • Sort — pick EPSS in the toolbar's sort control (descending puts the most-likely-exploited findings on top). Findings without an EPSS value always sort last (NULLS LAST), regardless of order.
  • Filter — set the EPSS threshold (min_epss, a value from 0 to 1) to show only findings with epss_score >= min_epss. For example, min_epss=0.5 hides everything the model predicts has under a 50% chance of exploitation. Findings with no EPSS value are excluded by the threshold filter (a missing score cannot satisfy >=).

Read EPSS from the API​

GET /v1/projects/{id}/vulnerabilities returns epss_score and epss_percentile on every finding (both null when the Trivy DB supplied no value). The same fields appear on the finding detail (GET /v1/vulnerability_findings/{finding_id}) and on the nested VulnerabilityRef.

Sort by EPSS, highest first:

curl -sS \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/vulnerabilities?sort=epss&order=desc"

Return only findings the model predicts have at least a 50% exploitation probability:

curl -sS \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/vulnerabilities?min_epss=0.5"

A finding in the response looks like this (other fields omitted):

{
  "cve_id": "CVE-2021-44228",
  "severity": "critical",
  "cvss_score": 10.0,
  "epss_score": 0.974,
  "epss_percentile": 0.999,
  "status": "new"
}
Gate the build on EPSS

EPSS can also drive the CI build gate, so a high-probability CVE fails the build even when it is not Critical. See Gate the build on EPSS.

KEV — known exploited vulnerabilities​

The portal flags every finding whose CVE is listed in the CISA KEV (Known Exploited Vulnerabilities) catalog — the list of roughly 1,600 CVEs the U.S. Cybersecurity and Infrastructure Security Agency (CISA) has confirmed are exploited in the wild.

KEV vs. EPSS vs. CVSS​

  • CVSS measures theoretical severity.
  • EPSS predicts the probability of exploitation.
  • KEV records a confirmed fact — someone is already exploiting this CVE. A KEV listing outranks any prediction; treat KEV-listed findings as the front of the remediation queue.

How the portal displays KEV​

  • Badge — a KEV badge appears next to the CVE in the findings table and in the drawer's Summary section. As with severity, the signal is the label, not color alone.
  • Due date — the drawer also shows the entry's remediation due date (kev_due_date), the deadline CISA assigns to each catalog entry. The deadline binds U.S. federal agencies, not your deployment — read it as an urgency signal. The badge grades that deadline into a three-state day count — see Due-date status.
  • A finding without the badge is merely not in the catalog — absence is not a verdict of safety.

Due-date status​

The KEV badge grades the CISA remediation due date so you can read the time pressure without doing calendar math. The findings table and the drawer show the same three states:

StateWhenDisplay
OverdueThe due date has passedRed, D+n — days past the deadline
ImminentDue within the next 7 daysAmber, D-n — days remaining
On trackDue more than 7 days outNeutral, D-n

As everywhere in the portal, color is never the only signal — the state is carried by the D-n / D+n day-count label itself, not by the tint alone. And as with the raw due date, the deadline binds U.S. federal agencies, not your deployment: read Overdue as the strongest urgency signal CISA publishes, not as a compliance breach on your side.

Priority sort​

Priority is the findings table's default sort. It orders rows by:

  1. KEV — catalog-listed findings first,
  2. severity — Critical → Info,
  3. EPSS — highest exploitation probability first (missing values last).

The top of the table is therefore always the confirmed-exploited, most severe, most-likely-attacked slice of the backlog. Pick any other option in the sort control to override it — the single-key sorts (severity, EPSS, discovered) are unchanged.

Where the data comes from​

A daily Celery beat task (trustedoss.kev_catalog_refresh) downloads the CISA KEV feed and syncs it into the portal's vulnerability catalog. Delisting is synced too: a CVE CISA removes from the catalog loses its badge on the same run. No re-scan is needed — the listing is stored on the CVE itself, so existing findings reflect it immediately.

Three env keys tune the refresh — KEV_FEED_URL, KEV_REFRESH_ENABLED, and KEV_REFRESH_TIMEOUT_SECONDS. See Environment variables — KEV catalog. Operators can audit the sync (last run, listed / delisted counts, skip reasons) on the admin health page — see KEV feed panel.

Air-gapped deployments

A deployment that cannot reach the CISA feed should set KEV_REFRESH_ENABLED=false. With the refresh disabled, no KEV data is loaded — no KEV badges or due dates appear, and the Priority sort effectively degrades to severity → EPSS.

Remediation SLA and aging​

The portal tracks how long every finding has been open against a per-severity remediation window, so a policy like "fix Critical CVEs within a week" becomes a filterable, sortable state on the findings table instead of a spreadsheet you keep elsewhere.

First detected vs. Discovered​

Two timestamps look similar but answer different questions:

  • Discovered — when this scan recorded the finding row. A re-scan resets it.
  • First detected — when this (project × component × CVE) combination was first seen in the project. It is carried forward across re-scans, automatic re-matches, and container re-scans, and it is the start of the SLA clock. The drawer shows it as the First detected row.

The SLA due date is always computed from the first detection, never from the latest scan — re-scanning a project does not reset any deadline. Findings recorded by a release that predates SLA tracking have no stored first-detection time; they fall back to the row's creation time.

Per-severity windows​

The due date is first detected + the severity's window:

SeverityDefault windowEnv key
Critical7 daysVULN_SLA_DAYS_CRITICAL
High30 daysVULN_SLA_DAYS_HIGH
Medium90 daysVULN_SLA_DAYS_MEDIUM
Low180 daysVULN_SLA_DAYS_LOW

Info and Unknown severities carry no SLA — informational findings are not remediation work, and an unknown severity must not be silently assigned a deadline. Their SLA due cell shows — and they never match any SLA filter. Operators tune the windows per deployment — see Environment variables — Vulnerability SLA; a non-numeric or non-positive override falls back to the default rather than disabling the clock.

The three states​

The SLA due column and the drawer's SLA chip grade the due date into three states:

StateWhenDisplay
OverdueThe due date has passedRed, with the due date
Due soonDue within the next 7 daysAmber, with the due date
On trackDue more than 7 days outNeutral, with the due date

The 7-day "due soon" window is fixed — the same grading the KEV due-date status uses. As everywhere in the portal, the state is carried by the label, not by color alone.

Filter and sort by SLA​

  • Filter — the toolbar's SLA control narrows the table to one state (sla=overdue, sla=imminent, or sla=ok). Findings without an SLA (Info / Unknown severity) never match any token.
  • Sort — pick SLA due in the sort control (sort=sla_due). Ascending puts the most urgent finding on top; findings without an SLA always sort last (NULLS LAST), regardless of order.

Only open work ages against the clock in practice: a finding you disposition (Not affected, False positive, Fixed) keeps its computed dates in the API, but it is out of the build gate and out of the breach sweep below.

Breach alerts​

A daily Celery beat task (trustedoss.vuln_sla_sweep, 02:45 UTC) walks every project's latest succeeded scan and notifies the owning team when open findings have just crossed their due date:

  • Only findings that crossed the deadline within the last 24 hours alert — each breach is announced exactly once, the day it happens. Aged breaches live on the ?sla=overdue view, not in your inbox.
  • Only open findings count — the same closed set the build gate uses (not_affected, fixed, false_positive are excluded; suppressed still counts as open work).
  • The alert is one aggregated in-app notification per project for each member of the owning team (kind vuln_sla_breach), carrying the crossed-finding count, a severity breakdown, and a link to the Vulnerabilities tab pre-filtered to ?sla=overdue. It is delivered in-app only, and your per-user in-app preference is respected.

Operators can mute the sweep deployment-wide with VULN_SLA_ALERTS_ENABLED=false — see Environment variables — Vulnerability SLA.

Read it from the API​

GET /v1/projects/{id}/vulnerabilities returns first_detected_at, sla_due_date, and sla_status (overdue / imminent / ok, all three fields null-capable) on every finding; the finding detail (GET /v1/vulnerability_findings/{finding_id}) carries the same fields.

List only the findings that are past their deadline:

curl -sS \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/vulnerabilities?sla=overdue"

Order the whole backlog by deadline, most urgent first:

curl -sS \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/vulnerabilities?sort=sla_due&order=asc"

A finding in the response looks like this (other fields omitted):

{
  "cve_id": "CVE-2021-44228",
  "severity": "critical",
  "status": "new",
  "discovered_at": "2026-07-20T08:12:03Z",
  "first_detected_at": "2026-07-01T02:30:44Z",
  "sla_due_date": "2026-07-08T02:30:44Z",
  "sla_status": "overdue"
}
CRA — "without undue delay"

The EU Cyber Resilience Act expects vulnerabilities to be remediated "without undue delay" (Annex I Part II §2); SLA tracking gives you the finding-age evidence and deadlines for that obligation, but it does not by itself make a product compliant. See CRA compliance mapping.

Fixed version — the version that remediates the CVE​

The finding drawer's Affected section shows a fixed version next to each affected component: the version you can upgrade that component to so it no longer carries that CVE. It answers the first question every triager asks — "what do I bump it to?".

It is per-(component × CVE), not per-CVE​

A single CVE is often patched at different versions across different packages, and a single package can be patched at different versions for different CVEs. So the fixed version is stored on the individual finding (the (component, CVE) pairing), not on the CVE globally. Two components affected by the same CVE can legitimately show two different fixed versions — that is expected, not a bug.

Where the value comes from​

The scan pipeline collects the fixed version from the Trivy DB findings for your scan, in priority order:

  1. Structured patched-version lists Trivy attaches to the finding (the lowest patched version wins).
  2. CycloneDX VEX affects[].versions[] entries marked status: fixed.
  3. The advisory's free-text recommendation ("Upgrade to 2.17.1 or later"), from which the portal extracts the concrete version.

The collected string is validated before it is stored — control characters, oversized values, range operators (^, >=), and anything that is not a plausible version token are rejected to "unknown" rather than persisted.

When it is blank​

The fixed version shows — (and the API returns null) when:

  • The Trivy DB reports no fix for this component / CVE (the upstream advisory has no patched version yet — a true zero-day or an as-yet-unfixed CVE), or
  • the finding was discovered by a older scan that pre-dates this collection. Re-scan the project to backfill it.

A blank fixed version means "no fix version is known", not "no fix exists" — always confirm against the upstream advisory before concluding a CVE is unfixable.

Read it from the API​

The fixed version appears as fixed_version on the finding detail's affected components and on the component drawer's nested CVE references:

# finding detail — fixed_version on each affected component
curl -sS \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/vulnerability_findings/${FINDING_ID}"
{
  "cve_id": "CVE-2021-44228",
  "affected_components": [
    {
      "name": "log4j-core",
      "version": "2.14.1",
      "purl": "pkg:maven/org.apache.logging.log4j/log4j-core@2.14.1",
      "fixed_version": "2.17.1"
    }
  ]
}
Upgrade recommendations build on this

The fixed version is the input to the upgrade recommendation (recommended version): once each finding knows its fix version, the portal computes the minimal safe bump per component. See Upgrade recommendation (recommended version).

While the fixed version answers "what patches this CVE", the recommended version answers the next question — "what one version do I bump this component to so it is clean?". It is the minimum safe upgrade: the lowest version that resolves all of the component's open CVEs at once.

The finding drawer shows it in a Recommended upgrade panel, above the references and affected components.

How it is computed​

A single component can carry several open CVEs, each fixed at its own version. The recommended version is the semantic-version maximum of those per-CVE fixed versions — the lowest version that is at least every individual fix:

  • Component log4j-core@2.14.1 has two open CVEs, fixed at 2.16.0 and 2.17.1. The recommended version is 2.17.1 — bumping to it clears both.

Only open findings count. CVEs you have dispositioned (Not affected, False positive, Fixed) are excluded — exactly the same set the build gate considers, so the recommendation never tells you to chase a CVE you already closed.

Priority signals​

The panel also surfaces three signals so you can tell a "fix this now" upgrade from a "fix it eventually" one:

  • Direct dependency — the component is one you declared yourself (graph depth 1), so you can bump it in your own manifest immediately. A transitive dependency shows no badge — you fix it by upgrading the direct parent that pulls it in (see Direct vs. transitive).
  • Highest severity — the most severe CVE among the component's open findings.
  • Highest EPSS — the highest exploitation probability among them.

These signals order the recommendations (a direct, high-EPSS, critical upgrade is the one to do first); they never change the recommended version itself.

When there is no recommendation​

The portal deliberately declines to recommend a version — and says why — rather than suggest a misleading partial upgrade:

  • No known fix version — at least one of the component's open CVEs has no fixed version (a true zero-day, or a finding scanned by an older build that pre-dates this collection). Bumping to the maximum of the known fixes would falsely imply the component is fully clean, so the panel shows a "no recommendation" hint instead.
  • Unparseable fix versions — every available fix string was malformed and could not be compared.

A "no recommendation" state is informational, not an error — confirm the un-fixed CVEs against their upstream advisories.

In the CI build-gate comment​

The SCA PR comment the build gate posts includes a Recommended upgrades section listing the highest-priority bumps (direct and most severe first), each as component current → recommended with the CVEs it resolves. It only appears when there is at least one actionable upgrade.

Read it from the API​

The finding detail (GET /v1/vulnerability_findings/{finding_id}) carries an upgrade_recommendation object:

{
  "cve_id": "CVE-2021-44228",
  "upgrade_recommendation": {
    "recommended_version": "2.17.1",
    "reason": "ok",
    "direct": true,
    "max_severity": "critical",
    "max_epss": 0.974,
    "finding_count": 2
  }
}

reason is ok (a version was computed), no_fix_version, unparseable_version, or no_open_findings; recommended_version is null for every value except ok.

Group by upgrade — the remediation worklist​

The recommended version is computed per component, but the flat findings table is organised per CVE — so a component with five open CVEs occupies five rows, all fixed by the same single bump. The By upgrade view inverts the table: instead of "every open finding, one row each", it shows every upgrade the project needs, one card each — the whole remediation worklist at a glance.

Switch views with the toolbar's Group by control: Flat (the default findings table) ⇄ By upgrade. The choice is per-visit — navigating away from the tab returns you to Flat.

Vulnerabilities tab — By upgrade view with one remediation cluster per component, most-actionable first

Reading a cluster​

Each card is one component's minimum safe upgrade — the same value the drawer's Recommended upgrade panel shows, aggregated across the whole project:

  • The header reads Upgrade {component} {current} → {recommended}, with a Fixes N count — how many open findings that single bump resolves.
  • The same three priority signals order the list, most-actionable first: a Direct badge (a dependency you declared yourself, so you can bump it in your own manifest), the highest severity, and the highest EPSS among the cluster's findings.
  • Expand a card to see the individual findings it covers — each carries its own Fixed in {version} — and clicking one opens the same finding drawer as the flat table.

Components whose open findings have no published fix are grouped under No upgrade available rather than given a misleading partial bump; the card states the reason ("Some CVEs have no fix version yet" or "Fix version could not be parsed").

In lock-step with the build gate​

Only open findings are clustered — exactly the set the build gate counts. Findings you have dispositioned (Not affected, False positive, Fixed, Suppressed) are excluded, so the summary line above the cards ("N upgrades resolve M findings") describes precisely the work that stands between the project and a clean gate.

Read it from the API​

The view is served by a single endpoint:

curl -sS \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/vulnerabilities/upgrade-clusters"

A cluster in the response looks like this (finding fields abbreviated):

{
  "scan_id": "0197fa2e-…",
  "total_findings": 9,
  "clusters": [
    {
      "component_name": "log4j-core",
      "component_purl": "pkg:maven/org.apache.logging.log4j/log4j-core@2.14.1",
      "current_version": "2.14.1",
      "recommended_version": "2.17.1",
      "reason": "ok",
      "direct": true,
      "max_severity": "critical",
      "max_epss": 0.974,
      "finding_count": 2,
      "findings": [{ "cve_id": "CVE-2021-44228", "fixed_version": "2.17.1" }]
    }
  ]
}

Clusters are computed against the project's latest succeeded scan by default; pass ?scan_id= to anchor them to a specific succeeded scan instead — the same snapshot semantics as the findings list, so an id that is not one of this project's succeeded scans returns 404. A project with no succeeded scan (or no open findings) returns 200 with an empty clusters list and total_findings: 0. Reading the view requires developer or higher, the same bar as the findings list.

Download a report (PDF or Excel)​

The portal renders a project-level vulnerability report from the latest successful scan: a risk summary, the severity and license distribution, the vulnerabilities (with CVE id, CVSS, EPSS, KEV state, and affected component), and the component list. It is generated on demand — there is no batch job to schedule. Two formats are offered: a PDF for reading / sharing, and an Excel (.xlsx) workbook (three sheets — Overview, Components, Vulnerabilities) for filtering and pivoting the data yourself.

Download from the UI​

  1. Open the project.
  2. Click the Reports tab.
  3. On the Vulnerability report card, click Download PDF report or Download Excel. The button shows Generating… while the document is built, then the download starts.

The file name is vulnerability-report-<project>.pdf or vulnerability-report-<project>.xlsx. Any inline error from the last attempt appears beside the buttons, and each download is recorded in the Reports tab's export-history table.

Excel formula-injection safety

Cell values sourced from scanned third-party metadata (component names, purls, CVE summaries) are neutralised before export: a value that begins with =, +, -, or @ is written as literal text, so opening the workbook can never execute a package name as a spreadsheet formula.

Download from the API​

Fetch the report over the API. The PDF endpoint returns the PDF bytes:

curl -sS -L -OJ \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/vulnerability-report.pdf"

The Excel endpoint returns the .xlsx workbook bytes:

curl -sS -L -OJ \
  -H "Authorization: Bearer ${TRUSTEDOSS_API_KEY}" \
  "https://trustedoss.example.com/v1/projects/${PROJECT_ID}/vulnerability-report.xlsx"

The PDF response is application/pdf; the Excel response is application/vnd.openxmlformats-officedocument.spreadsheetml.sheet. Both carry Content-Disposition: attachment (the -OJ flags tell curl to save under the server-supplied file name) and always reflect the latest succeeded scan — pinning to a specific historical scan id is not supported in this release.

StatusMeaning
200PDF download.
401Not authenticated — supply a valid token.
404Project does not exist, or the caller is not a member of its team (existence-hidden, same posture as the SBOM export).
500The PDF renderer failed; the body is application/problem+json. Retry, then check the worker image (see Troubleshooting).
Access

Downloading the report requires developer or higher. Cross-team callers receive 404, not 403, so a non-member cannot tell whether the project exists.

VEX documents — export & import​

Your triage can leave the portal as a standards document and come back in: export the project's current finding statuses as an OpenVEX or CycloneDX VEX document, or import an external one to auto-apply its statements (a vendor's "not affected" verdict, an edited round-trip, a CI artifact). Both directions, the status mappings, and the UI buttons live on their own page — see VEX documents — export & import.

Re-detection​

When the Trivy DB is refreshed and new CVEs land, the automatic re-match Celery beat task walks every project's most-recent SBOM and re-correlates. New findings appear automatically — no re-scan required.

The re-match runs after every successful weekly refresh (cadence TRIVY_DB_REFRESH_HOURS, default 168). Affected projects get fresh vulnerability_findings rows; operators can monitor /admin/scans and the per-project Vulnerabilities tab.

If the Notify on new CVE trigger is enabled (see admin notifications), the assigned team or watchers receive an email / Slack / Teams message.

Suppression vs. not affected vs. fixed​

A common point of confusion:

  • Not affected — you are confident the vulnerable code path does not run. Use sparingly; analysts should be able to point at the file or module.
  • Suppressed — explicitly silenced for a reason that does not fit the other states (e.g., "internal compensating control"). Use even more sparingly; suppressions should have an expiry date noted in the justification.
  • Fixed — the component was upgraded / patched, the next scan will (probably) confirm. The portal will auto-promote a Fixed finding to closed once the next scan no longer reports it.

Verify it worked​

After triaging:

  1. The status badge updates immediately in the table.

  1. The audit log records target_table=vulnerability_findings&action=update with previous_status, new_status, justification in the diff.

    SELECT count(*) FROM audit_logs
     WHERE target_table = 'vulnerability_findings'
       AND action = 'update'
       AND diff ? 'previous_status'
       AND diff ? 'new_status'
       AND created_at > now() - interval '1 hour';
  1. Excluded findings stop counting toward the project's risk score.
  1. Excluded findings are excluded from the build gate on the next scan.

Troubleshooting​

Findings reappear after suppression​

A finding that comes back as New after the next scan was probably suppressed at the scan level rather than at the project level. The portal pins suppression to the project / component / CVE triple — re-check that the suppression metadata matches.

Severity changed between scans​

Upstream feeds occasionally re-score CVEs (NVD analyst review, vendor advisories). The portal stores the severity at scan time and updates on the next resync. The drawer shows both values when they differ.

A CVE is missing from the report​

Possible causes:

  • The component's purl does not match the Trivy DB's normalization (rare; Maven groupId:artifactId style is the most common culprit). File an issue with the scan report.
  • The Trivy DB had not finished downloading when the scan ran — the automatic re-match beat repopulates findings on the next refresh cycle.
  • The CVE is in an ecosystem the Trivy DB does not yet cover. See Data sources — Ecosystem coverage.

PDF report download returns 500​

The PDF is rendered in-request with weasyprint. A 500 (with an application/problem+json body) means the renderer is unavailable — most often the backend image predates the weasyprint dependency. Rebuild the backend image and retry; if it persists, file an issue with the project id and the request timestamp.

Roadmap​

Items the manual previously promised that are not in this release; tracked for later releases.

  • "Last seen" column on the findings table (most recent scan that confirmed the finding) — planned.
  • Per-component filter and discovered-date range filter on the findings toolbar — planned; today the search box covers component lookup.
  • Standalone Fix availability drawer section — today the fix version surfaces as fixed_version inside the Affected section (real data in this release — see Fixed version), and the per-component minimum safe bump surfaces in the Recommended upgrade panel ( — see Upgrade recommendation).

See also​
